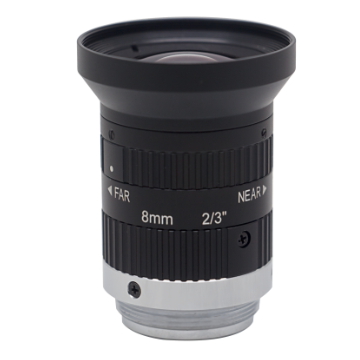

Hikrobot MVL-MF0824M-5MPE
130.81 €
130.81 €
kr 977.74
(Tax excluded)
OFFICIAL HIKROBOT PARTNERCE · EU compliant
Hikrobot MVL-MF0824M-5MPE
FA Lens
Order code
MVL-MF0824M-5MPE
Order number
310100768
Field of view
D (11.1 mm): 70.6° H (8.45 mm): 56.4° V (7.07 mm): 48.3°
Focal length
8 mm
Hikrobot MVL-MF0824M-5MPE is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement.
Key features
✓High resolution and consistency of image clarity.
✓Lower distortion and higher relative illumination rate.
✓Achromatic optical system design, Better imaging performance with color camera.
✓Excellent performance at high and low temperature.
✓Good optical performance at ultra-short working distance.
Applications & Industries
What you can solve with this product:
Specifications
Performance
Focal length8 mm
F-numberF2.4 to F16
Image sizeØ11 mm (2/3'')
TV distortion–0.90%
Field of ViewD (11.1 mm): 70.6° H (8.45 mm): 56.4° V (7.07 mm): 48.3°
Mechanical
Iris controlManual
Focus controlManual
Filter threadM35.5 × 0.5
MountC-mount
DimensionØ37 mm × 43.8 mm to 45.1 mm (Ø1.5" × 1.7" to 1.8")
Weight87.3 g (0.2 Ib.)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
General
CertificationRoHS 2.0
Additional specifications
Minimum object distance0.1 m
Flange back length17.526 mm
