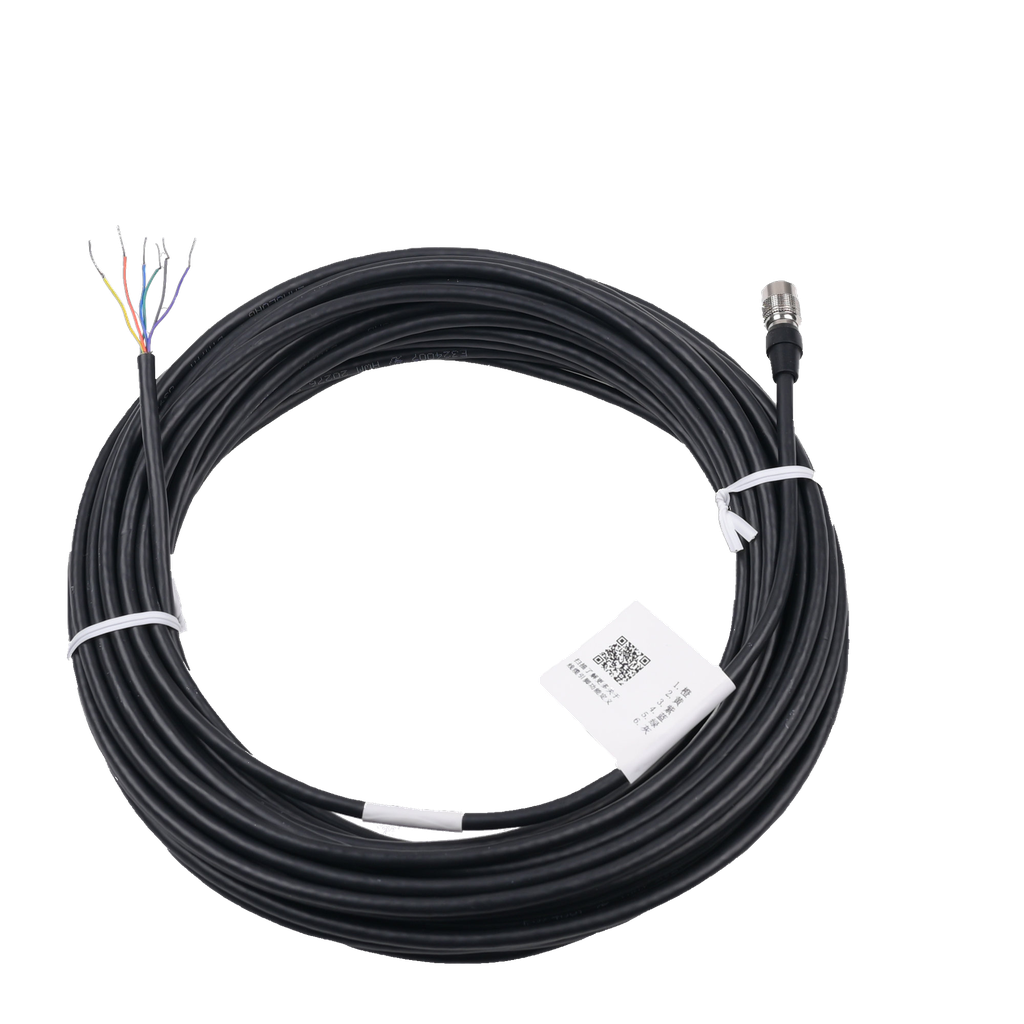

Hikrobot MV-ACP-H6p-open-SF-7m

Hikrobot MV-ACP-H6p-open-SF-7m

Hikrobot Super Flexible 6-Pin Power/IO Cables. Hirose 6pin Flexible，HR10A-7P-6S to Open，7m，Black，static/moveable/mechanical arm
199.71 € 199.71 €
kr 1,492.79
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACP-H6p-open-SF-7m

Cable

Order code
MV-ACP-H6p-open-SF-7m
Order number
310100837

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The 6-pin P7 Super Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.

Specifications

Specifications
Length7m
JacketPVC
Cable colorBlack
Connector durability≥ 750 cycles
Additional specifications
End A connectorP7 6-pin,Femal,Black insulator,Solder type
End B connectorOpen
Cable diameter5.5 mm
Cable mechanical2P*28AWG+2C*23AWG+AB
Connector modelmade in China
Min. bending radius66 mm
Applicable scenarioTank chain,Robot arm
Max. U-type bending cycles≥ 10 million times
Max. ±90° bending cycles≥ 3 million times
Max. ±180° torsional cycles≥ 5 million times
Max. voltage30 VDC
Working temperature-20°C~80°C
CertificationRoHS2.0
PackagingIndividual package
