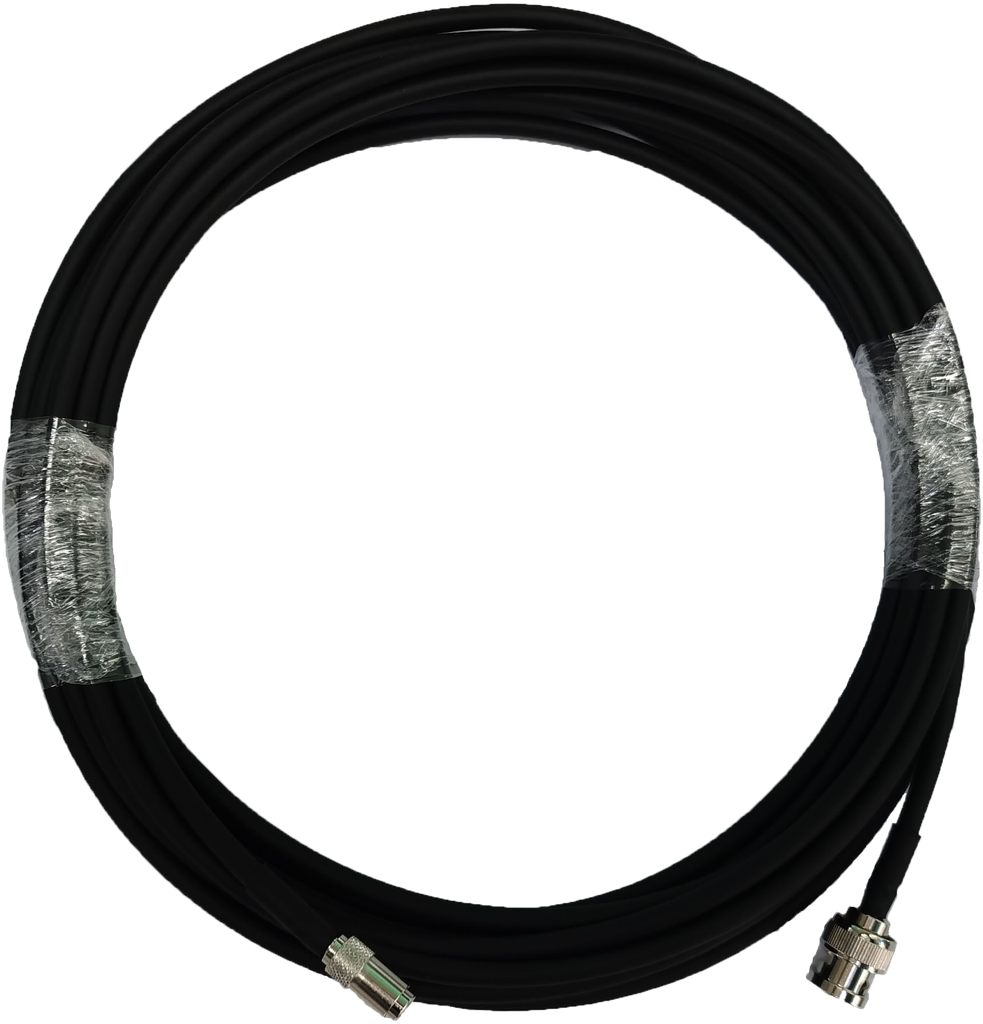

Hikrobot MV-ACXP6-DIN-BNC-HF-10m

Hikrobot MV-ACXP6-DIN-BNC-HF-10m

Hikrobot MV-ACXP6-DIN-BNC-HF-10m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

742.33 € 742.33 €
kr 5,549.06
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACXP6-DIN-BNC-HF-10m

Cable

Order code
MV-ACXP6-DIN-BNC-HF-10m
Order number
310100915

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorDIN 1.0/2.3
End B connectorBNC
Cable diameter5 mm
Length10 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius60 mm
Applicable scenarioTank chain
Max. U-type bending cycles2 million times
Max. voltage300 VDC
Working temperature-30°C-80°C
CertificationRoHS,UL
PackagingIndividual package
