Hikrobot MV-ACXP6-DIN-HDBNC-HF-3m

Hikrobot MV-ACXP6-DIN-HDBNC-HF-3m

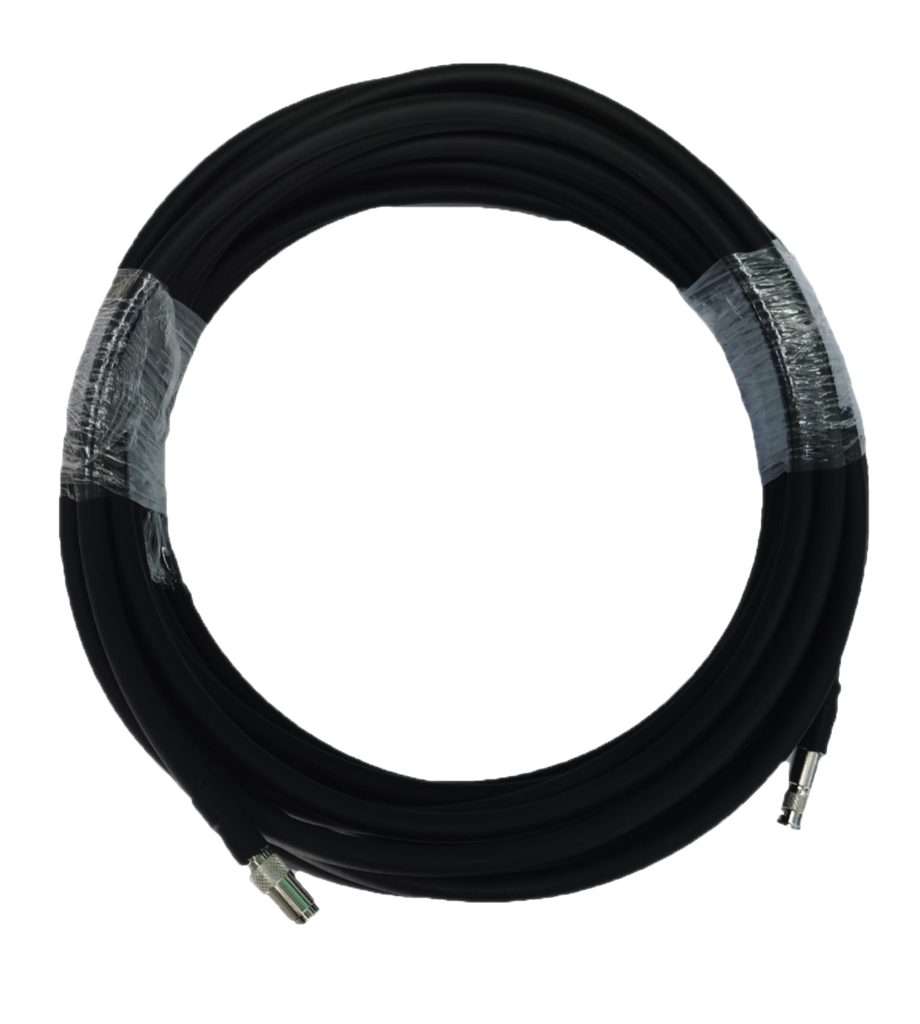

Hikrobot CXP-6 Cable. CoaXPress Cable，DIN to HD-BNC,3m,Flexible
486.18 € 486.18 €
kr 3,634.40
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACXP6-DIN-HDBNC-HF-3m

Cable

Order code
MV-ACXP6-DIN-HDBNC-HF-3m
Order number
310100916

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.

Specifications

Physical specification
End A connectorDIN 1.0/2.3
End B connectorHD-BNC
Cable diameter5 mm
Length3 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius60 mm
Applicable scenarioTank chain
Max. U-type bending cycles2 million times
Electrical specification
Max. voltage300 VDC
Additional information
Working temperature-30°C-80°C
CertificationRoHS、UL
PackagingIndividual package
