Hikrobot MV-AC10G-2LC-2LC-ST-3m

Hikrobot MV-AC10G-2LC-2LC-ST-3m

Hikrobot MV-AC10G-2LC-2LC-ST-3m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

56.43 € 56.43 €
kr 421.85
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

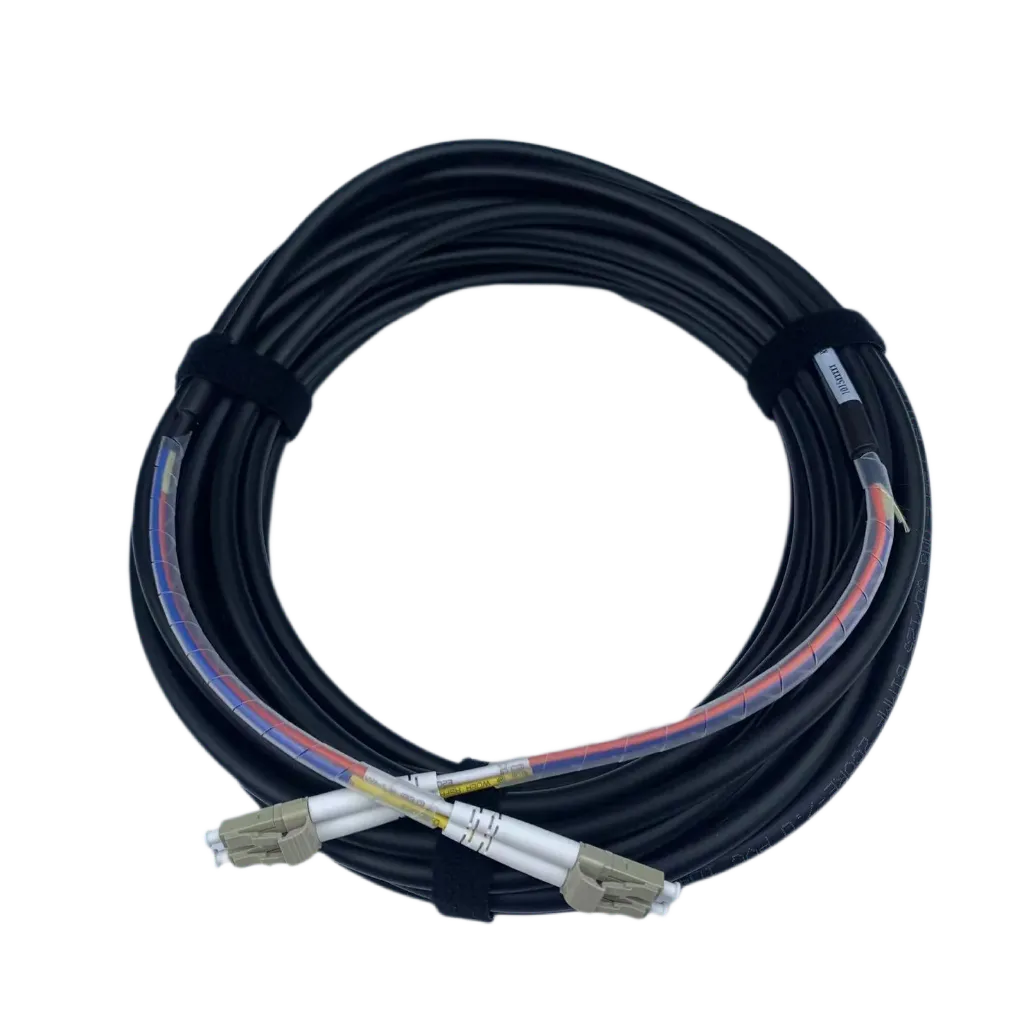

Hikrobot MV-AC10G-2LC-2LC-ST-3m

Cable

Order code
MV-AC10G-2LC-2LC-ST-3m
Order number
310100975

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The high flex 10 GigE optical fiber patch cord, with central wavelength 850 nm and multimode 50 μm/125 μm, can be used for data transmission of 10 GigE optical fiber port in static scenes.

Specifications

Physical specification
End A connectorLC (2-core)
End B connectorLC (2-core)
Cable diameter6.5 mm
Length3 m
Fiber typeMultimode 50 μm/125 μm
Central wavelength850 nm
Insertion loss≤ 0.30 dB
Return loss≥ 36 dB
Cable colorBlack
Connector durability200 mating cycles
Applicable scenarioStatic scenes
Additional information
Working temperature–20 °C to 75 °C (–4 °F to 167 °F)
CertificationRoHS
PackagingIndividual package
