Hikrobot MV-ACCL-SDR-MDR-HF-7m

Hikrobot MV-ACCL-SDR-MDR-HF-7m

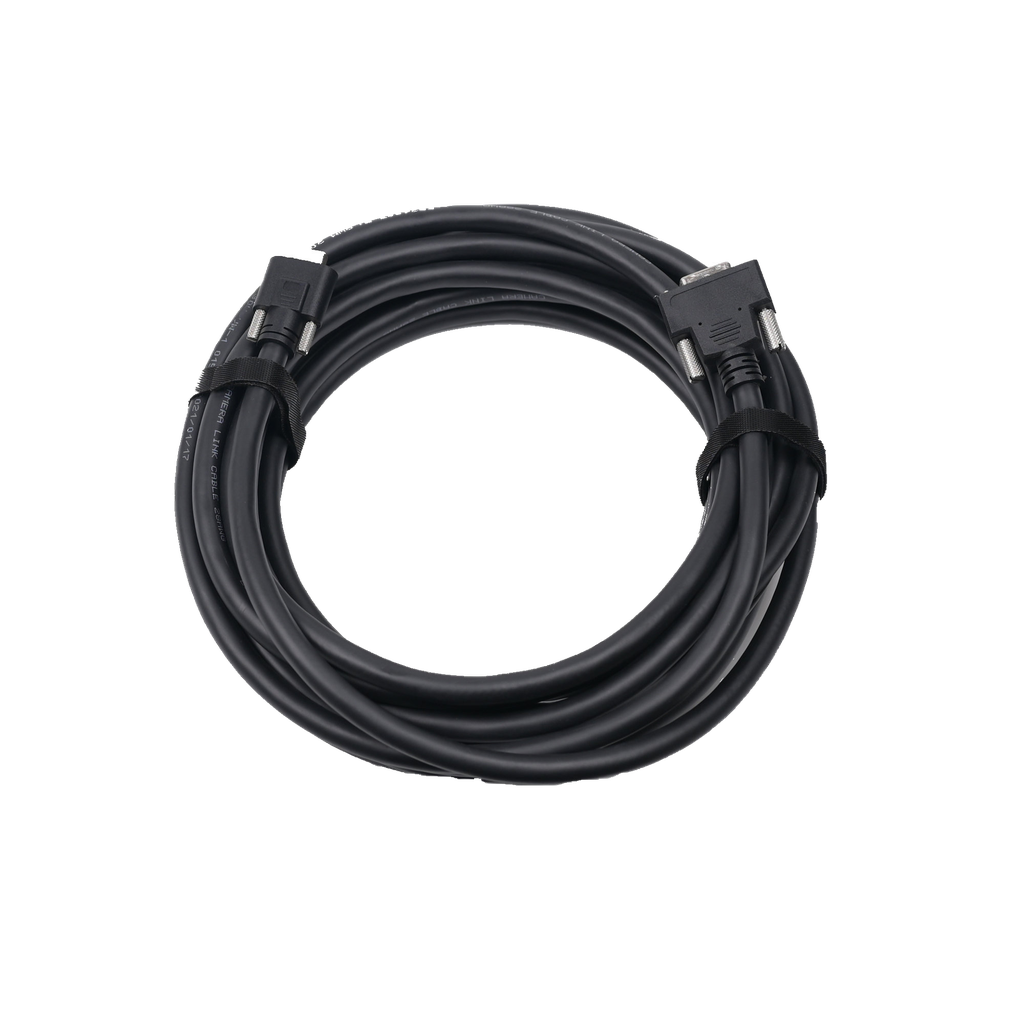

Hikrobot CameraLink Cable（MDR to SDR）. Flexible Camera Link Cable, S2M, Straight, 7m, moveable
529.65 € 529.65 €
kr 3,958.95
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACCL-SDR-MDR-HF-7m

Cable

Order code
MV-ACCL-SDR-MDR-HF-7m
Order number
310100993

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorSDR26
End B connectorMDR26
Cable diameter9.5 mm
Length7 m
Cable mechanicalUL20276
JacketPVC
Cable colorBlack
Connector modelmade in China
Connector durability500 cycles
Min. bending radius114 mm
Applicable scenarioDrag chain
Max. U-type bending cycles5 million times
Max. voltage30 VDC
Working temperature-20°C~80°C
CertificationUL
PackagingIndividual package
