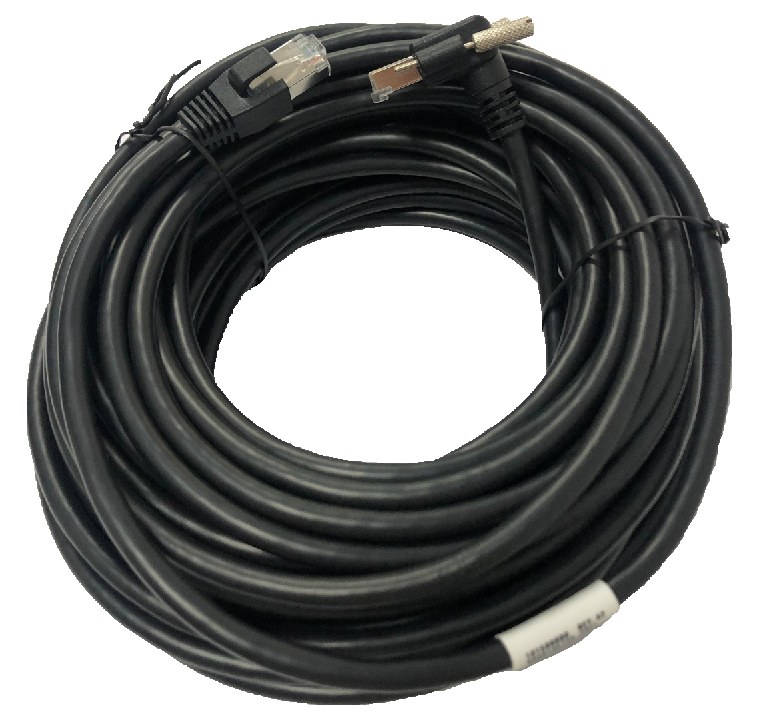

Hikrobot MV-ACG-RJ45s(up)-RJ45-HF-3m

Hikrobot Flexible GigE Network Cable. GigE, CAT.5E, SFTP, 2 x RJ45, 3m, Black, Right Angle (Down)，Flexible, static/moveable
56.44 € 56.44 €
kr 421.85
(Tax excluded)
Contact Us
Documents
MV-ACG-RJ45s(up)-RJ45-HF-3m - Datasheet.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACG-RJ45s(up)-RJ45-HF-3m

Cables

Order code
MV-ACG-RJ45s(up)-RJ45-HF-3m
Order number
Hikrobot 310101115

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Specifications

Physical specification
End A connectorRJ45 (with locking stud)，Bend (up)
End B connectorRJ45
Cable diameter6.5 mm
Length3/5/15 m
Cable mechanical4P*26#+AB
JacketPVC
Cable colorBlack
Connector durability≥ 750 cycles
Min. bending radius78 mm
Applicable scenarioTank chain
Max. U-type bending cycles5 million times
Electrical specification
Max. voltage30 VDC
Additional information
Working temperature-20℃ ~ 75℃
CertificationRoHS2.0，UL
PackagingIndividual package
