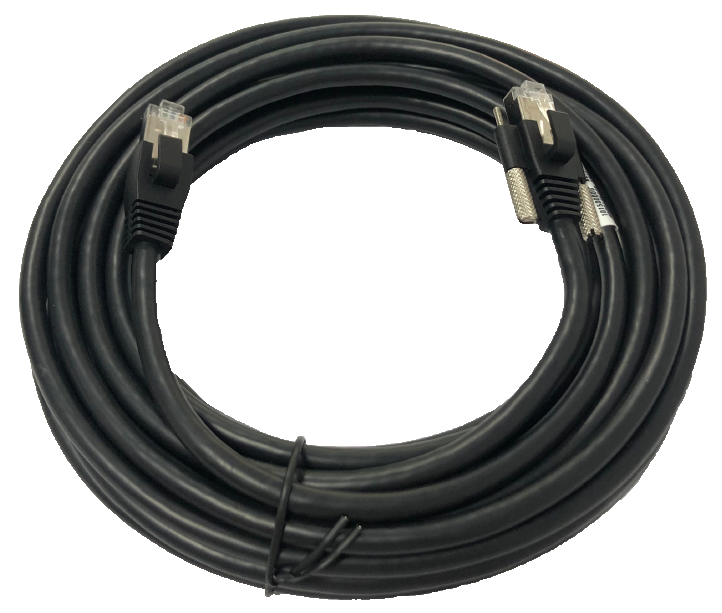

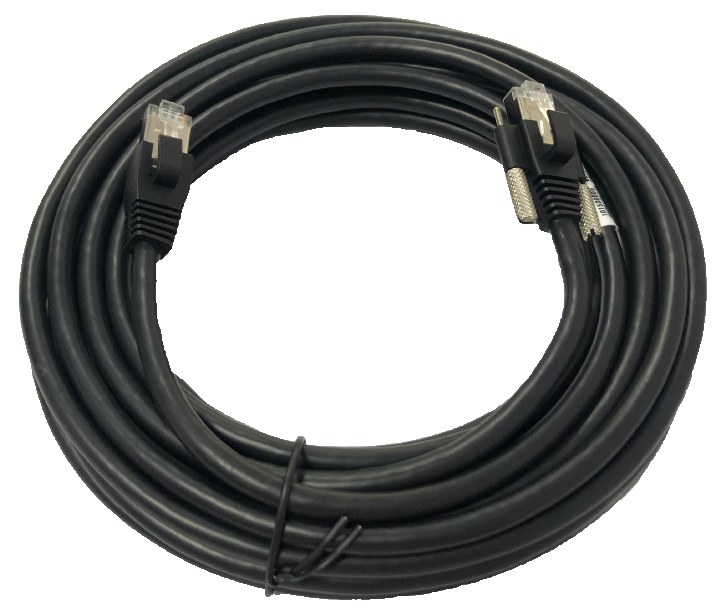

Hikrobot MV-ACG-RJ45s-RJ45-HF-5m

Cable

Order code
MV-ACG-RJ45s-RJ45-HF-5m
Order number
Hikrobot 310101122

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The RJ45 High Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter6.5 mm
Length5 m
Cable mechanical4P*26#+AB
JacketPVC
Cable colorBlack
Connector durability≥750 cycles
Min. bending radius78 mm
Applicable scenarioTank chain
Max. U-type bending cycles5 million times
Max. voltage30 VDC
Working temperature-20°C~ 75°C
CertificationRoHS2.0,UL
PackagingIndividual package

Downloads

Datasheets, drawings and manuals — all in one place.

MV-ACG-RJ45s-RJ45-HF-5m - Datasheet.pdfPDF · 884.3 KB
