MV-ACG-RJ45s-RJ45-SF-7m

Hikrobot MV-ACG-RJ45s-RJ45-SF-7m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-ACG-RJ45s-RJ45-SF-7m - Datasheet.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

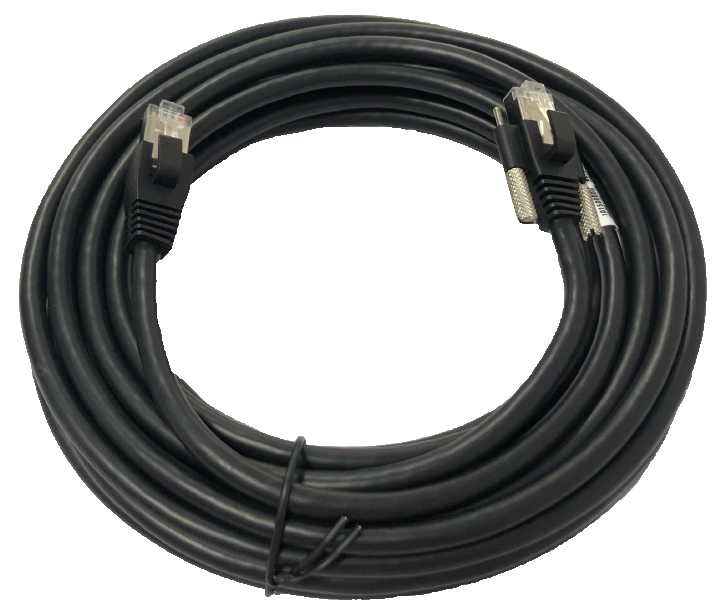

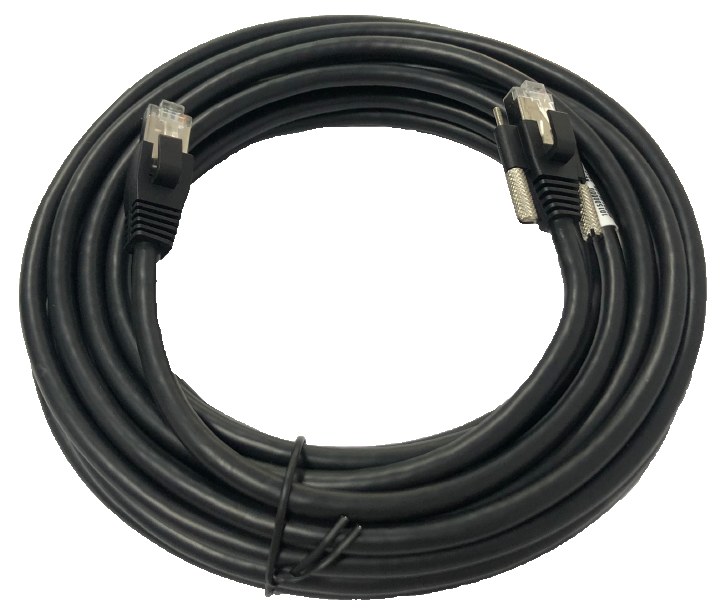

Hikrobot MV-ACG-RJ45s-RJ45-SF-7m

Cable

Order code
MV-ACG-RJ45s-RJ45-SF-7m
Order number
Hikrobot 310101129

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter6.5 mm
Length7 m
Cable mechanical4P*26#+AB
JacketPVC
Cable colorBlack
Connector durability≥750 cycles
Min. bending radius78 mm
Applicable scenarioTank chain,Robot arm
Max. U-type bending cycles10 million times
Max. ±90° bending cycles5 million times
Max. ±180° torsional cycles3 million times
Max. voltage30 VDC
Working temperature-20°C~ 75°C
CertificationRoHS2.0,UL
PackagingIndividual package
