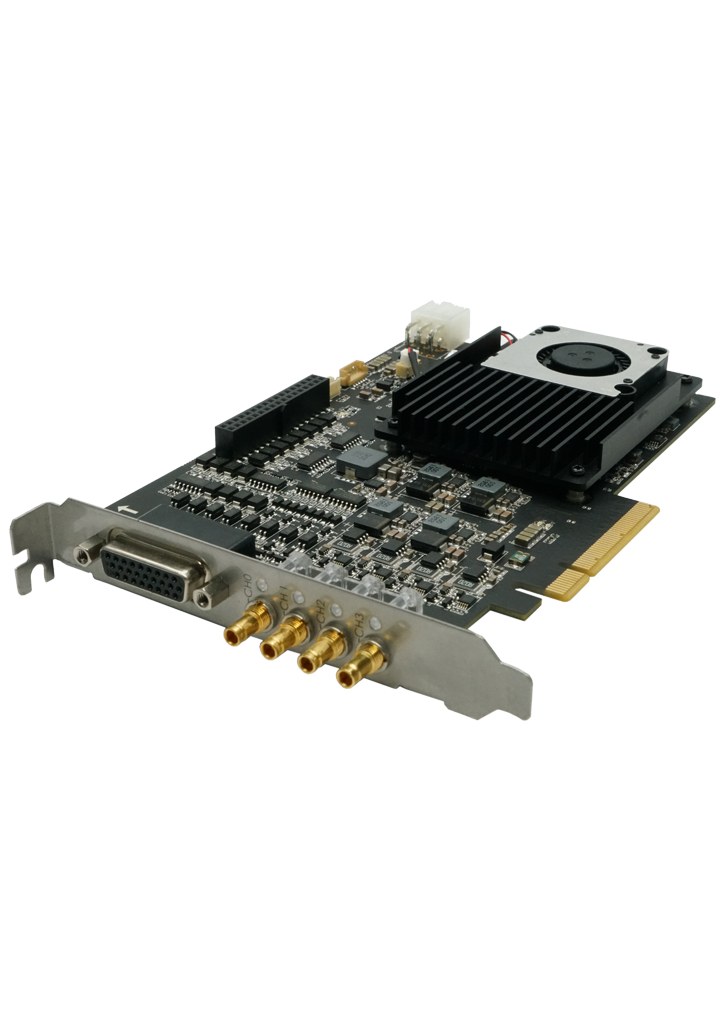

Hikrobot MV-GX1004

Frame Grabber

Order code
MV-GX1004
Order number
310101234
Interface
DIN 1.0/2.3 × 4
Memory
4 GB DDR3-RAM

Hikrobot MV-GX1004 is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps data transfer speed.
✓Supports PoCXP with each channel providing 13 W at most.
✓Various indicators indicate frame grabber status in real time.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK for secondary development.
✓Complies with Genlcam standard.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory4 GB DDR3-RAM
Host interface
InterconnectPCI-E gen2 × 8
Delivery bandwidth3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth)
Bus indicator1
Camera interface
StandardCoaXPress 1.0/1.1
InterfaceDIN 1.0/2.3 × 4
Power outputPoCXP, each channel provides 13 W @ 24 VDC at most
Camera type supportedCXP-6 connector industrial camera
Camera quantity supported4 at most
Camera connection speed1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6)
Stream4
Stream indicator4
Processing feature
Pixel formatMono 8/10/12/16 Bayer 8/10/12/16 RGB 8
GPIO
I/O TypeProvides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
ConnectorHD26 female header
Electrical feature
Power consumptionTyp. 14.4 W (without PoCXP)
Mechanical
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Client softwareMVS
Operating systemWindows 7/10/11, Ubuntu16.04 to 20.04 on Linux
CertificationRoHS, CE, KC
