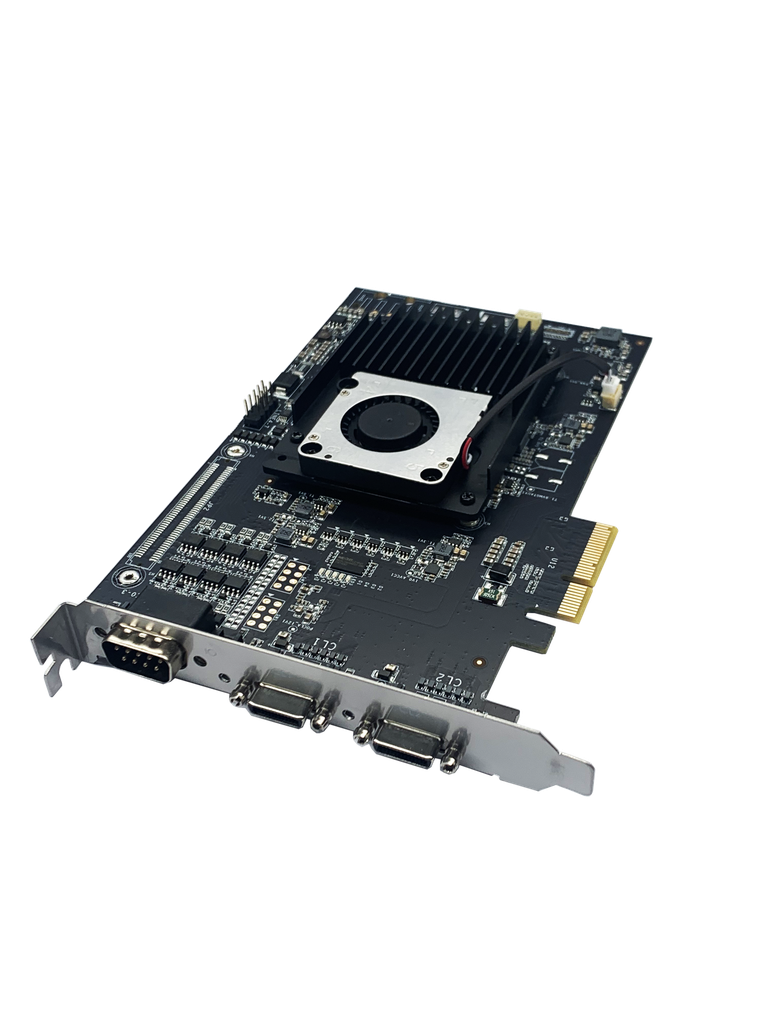

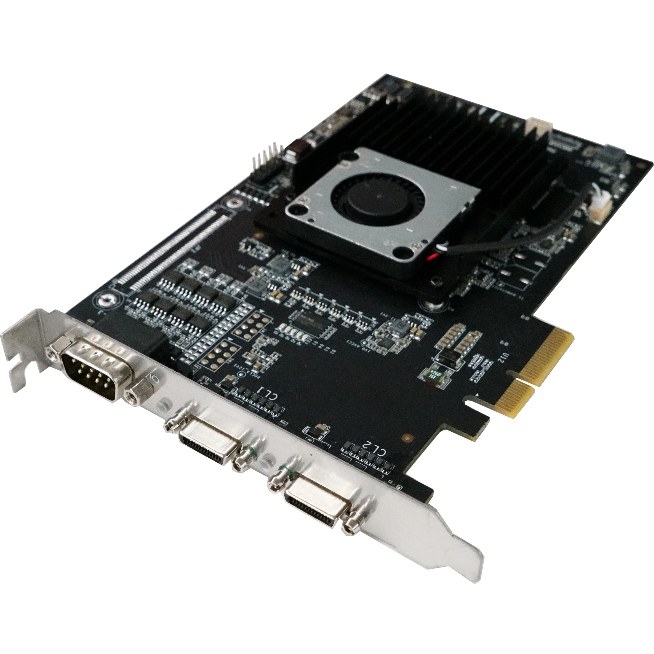

Hikrobot MV-GC1102IOL

Frame Grabber

Order code
MV-GC1102IOL
Order number
310101256
Interface
SDR × 2
Memory
1 GB DDR3-RAM

Hikrobot MV-GC1102IOL is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports Camera Link protocol with two SDR connectors accessing up to 6.8 Gbps data transfer speed theoretically.
✓Supports PoCL with each channel providing 4 W at most.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK and supports GenTL protocol for secondary development.
✓Complies with Genlcam standard.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory1 GB DDR3-RAM
Host interface
InterconnectPCI-E gen2 × 4
Delivery bandwidth1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth)
Indicator1
Camera interface
StandardCamera Link 2.1
InterfaceSDR × 2
Power outputPoCL, each channel provides 4 W@ 12 VDC at most
Camera type supportedCamera Link industrial camera
Camera quantity supported2 at most
Camera connection speed6.8 Gbps
Stream2
Stream indicator2
Processing feature
Pixel formatMono 8/10/12/16, Bayer 8/10/12/16, RGB 8, BGR 8
GPIO
I/O TypeConfigurable input/output × 8, compatible with single-ended/differential Line 2/3 supports 3.3 VDC to 26 VDC input and 3.3 VDC to 26 VDC output Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output
ConnectorDB9 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole)
Electrical feature
Power consumptionTyp. 9 W (without PoCL)
Mechanical
Dimension181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F)
Humidity10% to 95% RH, non-condensing
General
Client softwareMVS
Operating system32/64-bit Windows 7/10
CertificationCE, RoHS, KC
Additional specifications
Configuration modeBase, Medium, Full, 80-bit, Lite
Pixel clock20 MHz to 85 MHz
