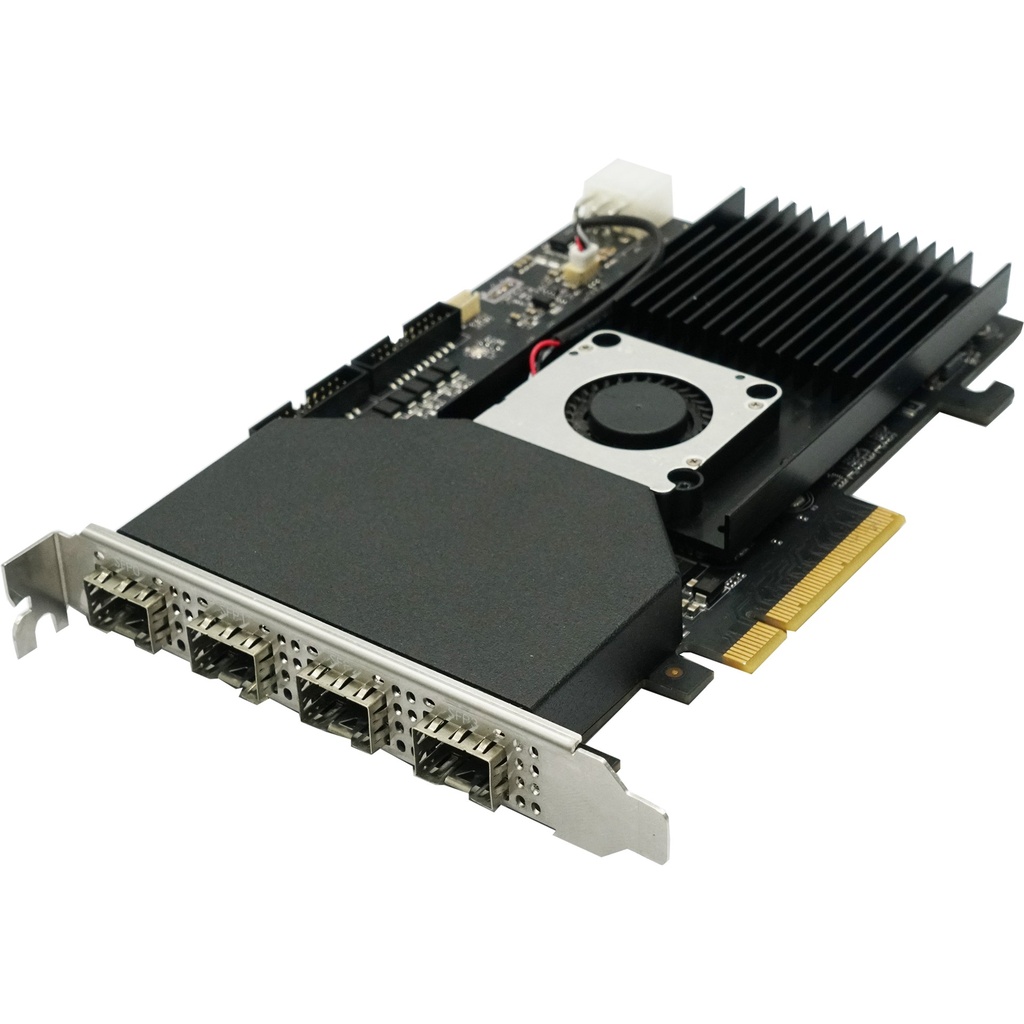

Hikrobot MV-GS1004

Frame Grabber

Order code
MV-GS1004
Order number
310101314
Interface
SFP × 4
Memory
2 GB DDR3-RAM

Hikrobot MV-GS1004 is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
✓Various indicators indicate frame grabber status in real time.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK for secondary development.
✓Complies with Genlcam standard.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory2 GB DDR3-RAM
Host interface
InterconnectPCI-E gen2 × 8
Delivery bandwidth3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth)
Indicator1
Camera interface
StandardGigE Vision V2.0
InterfaceSFP × 4
Camera type supported10 GigE industrial camera
Camera quantity supported4 at most (total bandwidth up to 27 Gbps)
Camera connection speed10 Gbps
Stream4
Stream indicator4 pairs
Processing feature
Pixel formatMono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed
GPIO
I/O TypeProvides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
ConnectorFemale header
Electrical feature
Power consumptionTyp. 20 W
Mechanical
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Client softwareMVS
Operating systemWindows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux
CertificationCE, KC
