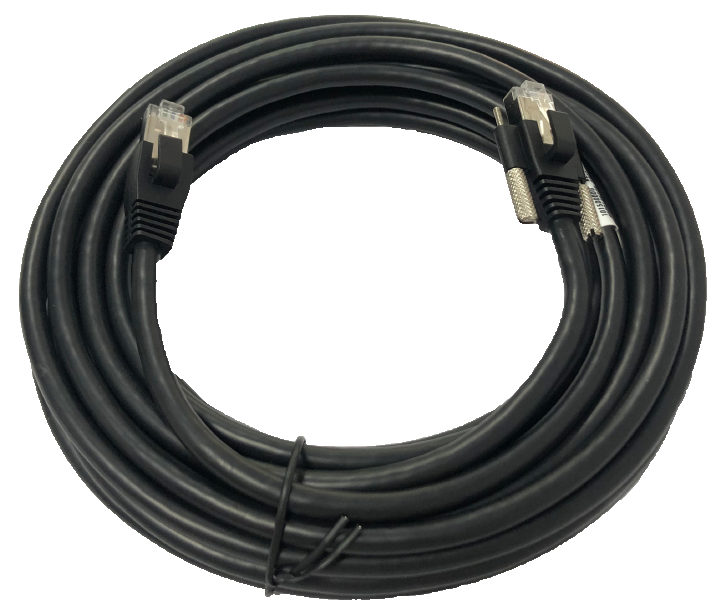

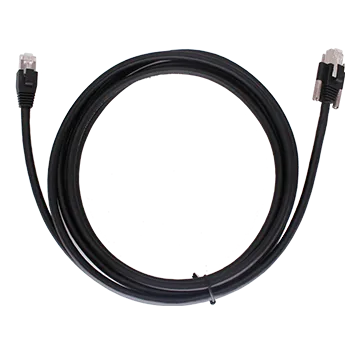

Hikrobot MV-AC10G-RJ45s-RJ45-HF-3m

Hikrobot MV-AC10G-RJ45s-RJ45-HF-3m

Hikrobot MV-AC10G-RJ45s-RJ45-HF-3m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

147.59 € 147.59 €
kr 1,103.29
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-AC10G-RJ45s-RJ45-HF-3m

Cable

Order code
MV-AC10G-RJ45s-RJ45-HF-3m
Order number
310101334

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓RJ45 high-flex 10 GigE cable can be used for data transmission of 10 GigE interface cameras, and it is available in various lengths.

Specifications

Physical specification
End A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter7.0 mm
Length3 m
Cable mechanical(26#*1P+AL)*4C+AB
JacketPVC
Cable colorBlack
Connector durability>750 cycles
Min. bending radius84 mm
Applicable scenarioDrag chains
Max. U-type bending cycles5 million
Electrical specification
Max. voltage30 VDC
Additional information
Working temperature–20 °C to 75 °C (–4 °F to 167 °F)
CertificationRoHS, UL
PackagingIndividual package
