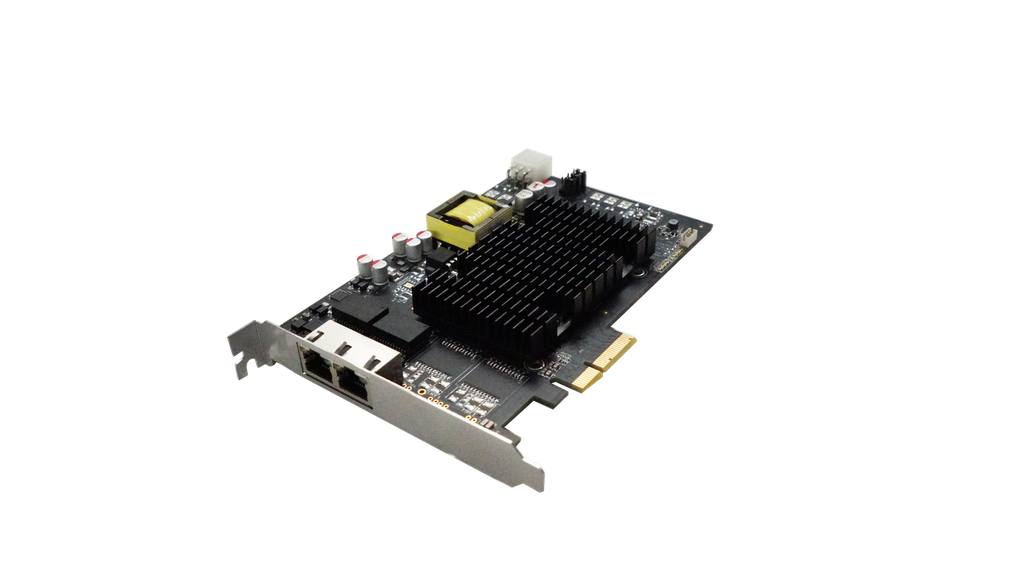

Hikrobot MV-GE2202P

Frame Grabber

Order code
MV-GE2202P
Order number
310101508
Interface
RJ45 × 2

Hikrobot MV-GE2202P is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports IEEE 802.3 protocol.
✓Adopts multiple independent RJ45 connectors.
✓Supports 3U and 4U chassis.
✓Supports PoE with each channel providing 15.4 W.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Performance
Main chipWX1860 chip
Host interface
InterconnectPCI-E gen2 × 4
Delivery bandwidth860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth)
Camera interface
StandardIEEE 802.3
InterfaceRJ45 × 2
Camera type supportedGigE industrial camera
Camera quantity supported2 at most
Camera connection speed10/100/1000 Mbps
Stream2
Electrical feature
Power consumptionTyp. 2 W (without PoE)
Mechanical
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Weight190 g (0.4 lb.)
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Operating system64-bit Windows 7/10/11, Linux
CertificationCE, KC

Downloads

Datasheets, drawings and manuals — all in one place.

MV-GE2202P - CAD (RAR).rarCAD (RAR) · 4.1 MB
MV-GE2202P - Datasheet.pdfPDF · 655.1 KB
