Hikrobot MV-ACP-TJC8x7-FL-0.6m

Hikrobot MV-ACP-TJC8x7-FL-0.6m

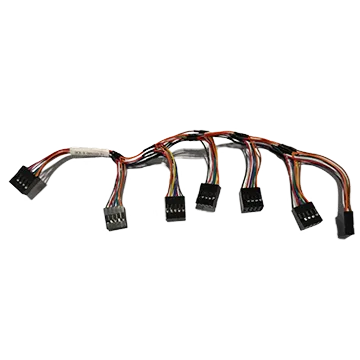

Hikrobot CML Frame Grabber I/O Trigger Cable. Frame Grabber internal I/O cable,TJC8 9pin,0.6m
47.74 € 47.74 €
kr 356.88
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACP-TJC8x7-FL-0.6m

Cable

Order code
MV-ACP-TJC8x7-FL-0.6m
Order number
310101679
Interface
9-pin Female Header*7

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The Frame Grabber Internal I/O Casecade Cable (Flexible) can be used for I/O signal wiring of multiple frame grabbers, and can support up to seven interfaces.

Specifications

Specifications
Interface9-pin Female Header*7
Cable diameter8.5 mm
Length0.6 m
Cable mechanicalUL1571+28AWG+PVC(70-80P)
JacketPVC
Cable colorBlack
Connector durability>100 cycles
Applicable scenarioStatic scene
Max. voltage30 VDC
Working temperature-20°C ~ 80°C
CertificationRoHS
PackagingIndividual package
