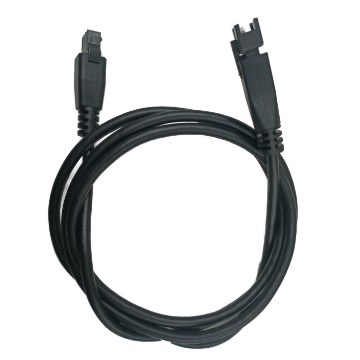

Hikrobot MV-LW-H-010-1-S

Light Source Accessories

Order code
MV-LW-H-010-1-S
Order number
310102087

Genuine Hikrobot Light Cables — cable for connecting machine-vision lighting.

Key features

✓Provides various connector types for various machine vision light source interfaces.
✓Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a risk of voltage drop under 30 m distance).

Specifications

Physical specification
Channel1
End A connectorSMR-03V-B
End B connectorSMR-03V-BC
Length10 m
Cable diameterΦ5 mm
Cable mechanical24AWG*2C
Cable jacketPVC
Max. U-type bending cycles5 million times
Min. bending radius60 mm
Connector durability2000 times
Flame resistance ratingVW-1
Electrical specification
Insulation≥ 20 MΩ/KM
Withstand voltage capability30 V
Mechanical
TemperatureWorking temperature: 0 °C to 80 °C (32 °F to 176 °F) Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F)
Humidity20% RH to 90% RH (no condensation)
Ingress protectionIP55 (under correct installation)
General
CertificationRoHS 2.0

Downloads

Datasheets, drawings and manuals — all in one place.

MV-LW-H-010-1-S - Datasheet.pdfPDF · 267.0 KB
MV-LW-H-010-1-S - Drawing.pdfPDF · 128.9 KB
