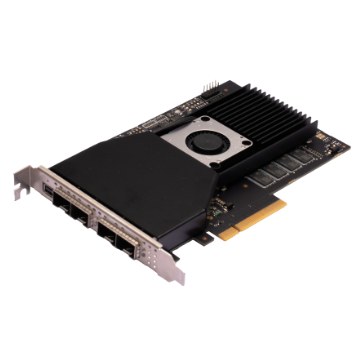

Hikrobot MV-GS1104F

Frame Grabber

Order code
MV-GS1104F
Order number
310102160
Interface
2LC fiber port
Memory
4 GB DDR4

Hikrobot MV-GS1104F is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports XoFLink protocol with multiple fiber ports to transmit data.
✓Utilizes an interconnect of PCI-E gen3 × 8 to support image capture from 4 cameras simultaneously at a speed of 10 Gbps.
✓Various indicators indicate frame grabber status in real time.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK for secondary development.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory4 GB DDR4
Host interface
InterconnectPCI-E gen3 × 8
Delivery bandwidth7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth)
Indicator1
Camera interface
StandardXoFLink
SFP+ moduleSFP+ × 4
Data interface2LC fiber port
Camera quantity supported1/2/3/4
Camera connection speed10 Gbps for single port, 40 Gbps in total
Stream4
LED indicator4
GPIO
I/O TypeProvides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers. ● I/O on bracket: Line 0 to Line 7 supports input and output (3.3 V to 24 V) ● I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V)
ConnectorConnector of I/O on bracket: 20-pin MiniDP female connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 x 5, 10-pin hole)
Electrical feature
Power consumptionTyp. 20 W
Mechanical
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Client softwareMVS
Operating systemWindows 7/10/11, Ubuntu 16.04 to 20.04 on Linux
CertificationCE, KC, RoHS
