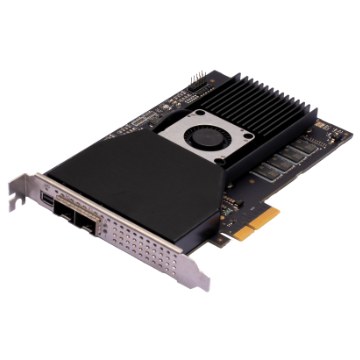

Hikrobot MV-GS1002F

Frame Grabber

Order code
MV-GS1002F
Order number
310102231
Interface
2LC fiber port
Memory
2 GB DDR3L

Hikrobot MV-GS1002F is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Provides multiple fiber ports to transmit data.
✓Various indicators indicate frame grabber status in real time.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK for secondary development.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory2 GB DDR3L
Host interface
InterconnectPCI-E gen2 × 8
Delivery bandwidth4000 MB/s (max. transmission bandwidth) 3200 MB/s (sustained transmission bandwidth)
Indicator1
Camera interface
StandardXoFLink
Data interface2LC fiber port
Camera type supportedXoF fiber port line scan camera
Camera quantity supported2 at most
Camera connection speed10 Gbps for one port, total bandwidth up to 20 Gbps
Stream2
Stream indicator2 pairs
GPIO
I/O TypeProvides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
ConnectorFemale header
Electrical feature
Power consumptionTyp. 20 W
Mechanical
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Client softwareMVS
Operating systemWindows 7/10/11
CertificationCE, KC, RoHS
Additional specifications
SFP+ moduleSFP+ × 2
