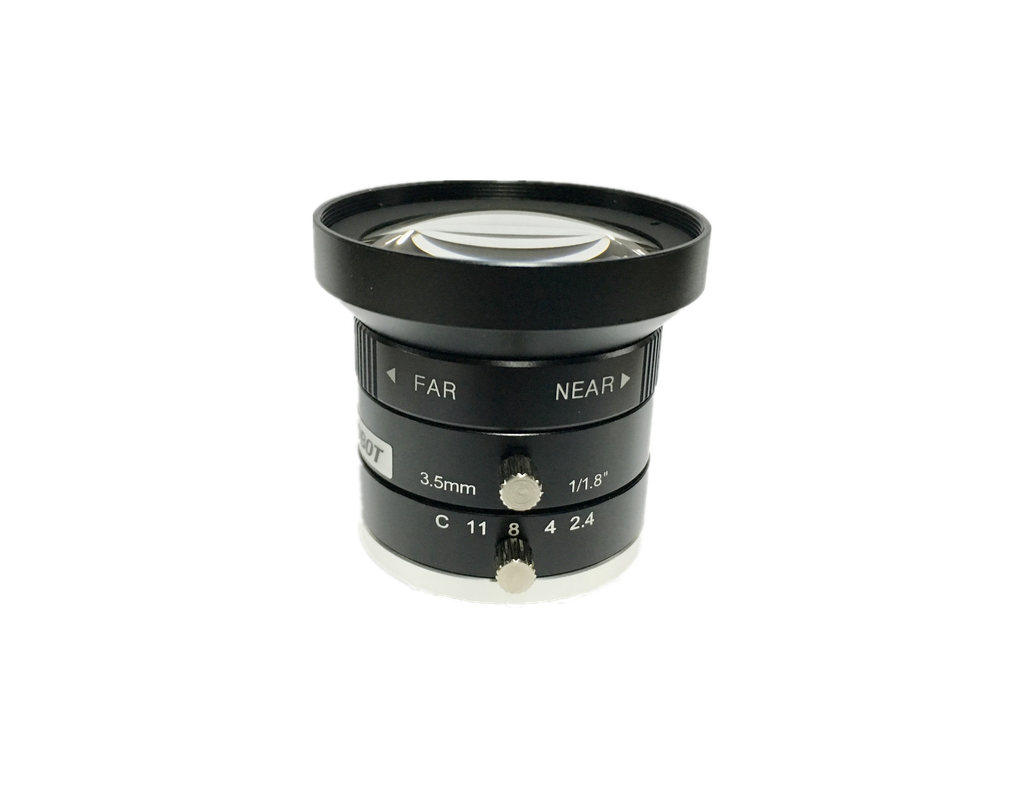

Hikrobot MVL-LF3040M-005-M72
1,134.94 €
1,134.94 €
kr 8,483.32
(Tax excluded)
OFFICIAL HIKROBOT PARTNERCE · EU compliant
Hikrobot MVL-LF3040M-005-M72
FA Lens
Order code
MVL-LF3040M-005-M72
Order number
310102270
Working distance
205 mm to 1000 mm (tolerance: ± 5 mm)
Focal length
30 mm
Hikrobot MVL-LF3040M-005-M72 is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement.
Key features
✓Adopts high-precision lens for 8k 7 μm line scan cameras.
✓Provides excellent consistency of image clarify with high resolution.
✓Provides ultra-high image resolution at the maximum iris of F4.0.
✓Provides maximum image size Φ58 mm.
Applications & Industries
What you can solve with this product:
Specifications
Performance
Focal length30 mm
F-numberF4.0 to F16
Image sizeΦ58 mm
Optical distortion–0.84%
Magnification range0.145 x to 0.031 x
Working distance range205 mm to 1000 mm (tolerance: ± 5 mm)
Conjugate distance range345 mm to 1137 mm (tolerance: ± 9 mm)
Mechanical
Iris controlManual
Focus controlManual
MountM72 × P0.75
Flange back length12 mm
DimensionΦ76 mm × 123.93 mm (Φ3.0" × 4.9")
Weight797 g (1.8 lb.)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
General
CertificationRoHS 2.0
