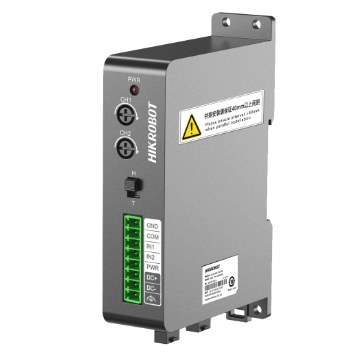

Hikrobot MV-LE100-24W24-2

Hikrobot MV-LE100-24W24-2 — MV-LE100 analog light controller supports infinitely variable brightness and outputting multichannel light sources. It provides trigger input connectors, device management interface, etc. The analog light controller helps users realize fast and convenient deployment of vision light source on site.. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-LE100-24W24-2 - Datasheet.pdf MV-LE100-24W24-2 - Drawing.pdf MV-LE100-24W24-2 - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-LE100-24W24-2

Hik Light Controller

Order code
MV-LE100-24W24-2
Order number
310102318
Interface
3.5 mm × 2 terminal block

Genuine Hikrobot Light Controller — light controller for driving and dimming machine-vision illumination.

Key features

✓Adopts constant voltage control and supports infinitely variable brightness.
✓Adopts knob control on control panel, and plug and play.
✓Provides multichannel opto-isolated inputs.
✓Supports installation via slide rail or screw hole.
✓Supports overcurrent, overload, short circuit protection.

Specifications

Performance
Channel2-channel
Dimming modeControl panel (knob)
Trigger modeExternal trigger
Electrical feature
Output current for each channelMax. 0.5 A
Mechanical
Power supply interface3.5 mm × 2 terminal block
Digital I/OOpto-isolated input × 2
Dimension24 mm × 70 mm × 106 mm (0.9" × 2.8" × 4.2")
Shell materialPlastic
WeightApprox. 162 g (0.4 lb.)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 85% RH (no condensation)
Ingress protectionIP30
General
CertificationCE, KC
