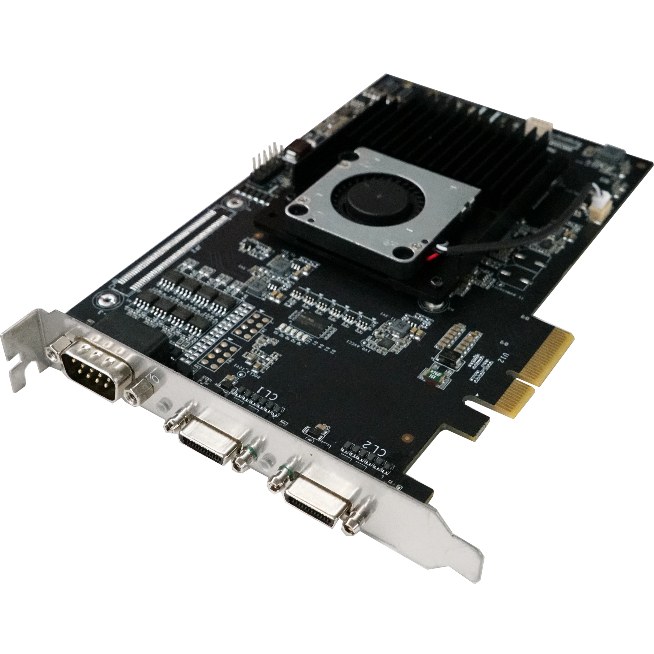

Hikrobot MV-GY1004 V2.0

Hikrobot MV-GY1004 V2.0

Hikrobot MV-GY1004 — A machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-GY1004

Frame Grabber

Order code
MV-GY1004
Order number
310102364
Interface
HD-BNC × 4
Memory
4 GB DDR4-RAM

Hikrobot MV-GY1004 is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports CXP-12 protocol with each channel accessing up to 12.5 Gbps data transfer speed.
✓Supports PoCXP with each channel providing 13 W at most.
✓Various indicators indicate frame grabber status in real time.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK for secondary development.
✓Complies with Genlcam standard.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory4 GB DDR4-RAM
Host interface
InterconnectPCI-E gen3 × 8
Delivery bandwidth7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth)
Bus indicator1
Camera interface
StandardCoaXPress 2.1
InterfaceHD-BNC × 4
Power outputPoCXP, each channel provides 13 W @ 24 VDC at most
Camera type supportedCXP-6/CXP-12 connector industrial camera
Camera quantity supported4 at most, supports connecting 1 to 4 camera(s)
Camera connection speed1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12)
Stream4
Stream indicator4
Processing feature
Pixel formatMono 8/10/12/16 Bayer 8/10/12 RGB 8
GPIO
I/O TypeConfigurable input/output × 11, compatible with single-ended/differential I/O on bracket: Line 0 to Line 6 supports input and output (3.3 V to 24 V). I/O on PCB: Line 7 to Line 10 supports input and output (3.3 V to 24 V).
ConnectorConnector of I/O on bracket: DB15 male connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole)
Electrical feature
Power consumptionTyp. 16.8 W (without PoCXP)
Mechanical
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Client softwareMVS
Operating systemWindows 7/10/11, Ubuntu 18.04 to 24.04 on Linux
CertificationCE, RoHS, KC
