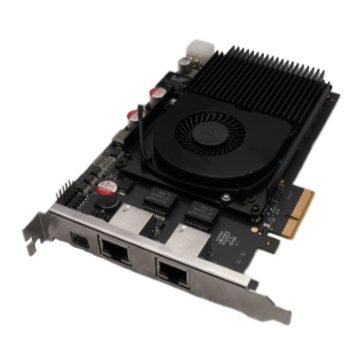

Hikrobot MV-GT1102P
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-GT1102P

Frame Grabber

Order code
MV-GT1102P
Order number
310102787
Interface
RJ45 × 2, supports PoE, RJ45 × 4, supports PoE
Memory
2 GB DDR4-RAM, 4 GB DDR4-RAM

Hikrobot MV-GT1102P is a machine-vision frame grabber for high-bandwidth image transfer between industrial camera and PC.

Key features

✓Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
✓Supports PCI-E gen3 × 8 bus interface and the max. bus bandwidth of 40 Gbps.
✓Supports card-end pre-processing to reduce CPU load.
✓Supports data packet resending, event control, etc.
✓Adopts multiple I/O connectors for input and output.
✓Provides SDK for secondary development.
✓Complies with Genlcam standard.

Applications & Industries

What you can solve with this product:

High-bandwidth image capture (Camera Link / CoaxPress)
High-bandwidth image capture (Camera Link / CoaxPress)
Deterministic acquisition
Deterministic acquisition for high-speed inspection
Multi-camera image transfer to the vision PC
Multi-camera image transfer to the vision PC

Specifications

Memory
On-board memory2 GB DDR4-RAM, 4 GB DDR4-RAM
Host interface
InterconnectPCI-E gen3 × 4, PCI-E gen3 × 8
Delivery bandwidth7000 MB/s (max. transmission bandwidth) 6750 MB/s (sustained transmission bandwidth)
Camera interface
StandardGigE Vision V2.0
InterfaceRJ45 × 2, supports PoE, RJ45 × 4, supports PoE
Camera type supportedGigE industrial camera, 10 GigE industrial camera, and 2.5 GigE industrial camera
Camera quantity supported2 at most (total bandwidth up to 20 Gbps), 4 at most (total bandwidth up to 40 Gbps)
Camera connection speed10 Gbps
Stream2, 4
Stream indicator2 pairs, 4 pairs
Processing feature
Pixel formatMono 8/10/10p/12/12p/16 Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
GPIO
I/O TypeConfigurable input/output × 6, compatible with single-ended/differential, and supports cascading of multiple frame grabbers I/O on bracket: Line 0/1/2/3 supports 3.3 VDC to 24 VDC input, and 3.3 VDC output, N-terminal reference voltage is adjustable simultaneously I/O on PCB: Line 4/5 supports 3.3 VDC to 24 VDC input and 3.3 VDC output
ConnectorI/O on bracket: Mini-DP, female, 20-pin I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes)
Electrical feature
Power consumptionTyp. 21.1 W, Typ. 28.5 W
Mechanical
Dimension181 mm × 126.3 mm × 22.4 mm (7.1" × 5.0" × 0.9")
TemperatureWorking temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
General
Client softwareMVS
Operating systemWindows 7/10/11
CertificationCE, KC, RoHS
Additional specifications
Bus indicator1
