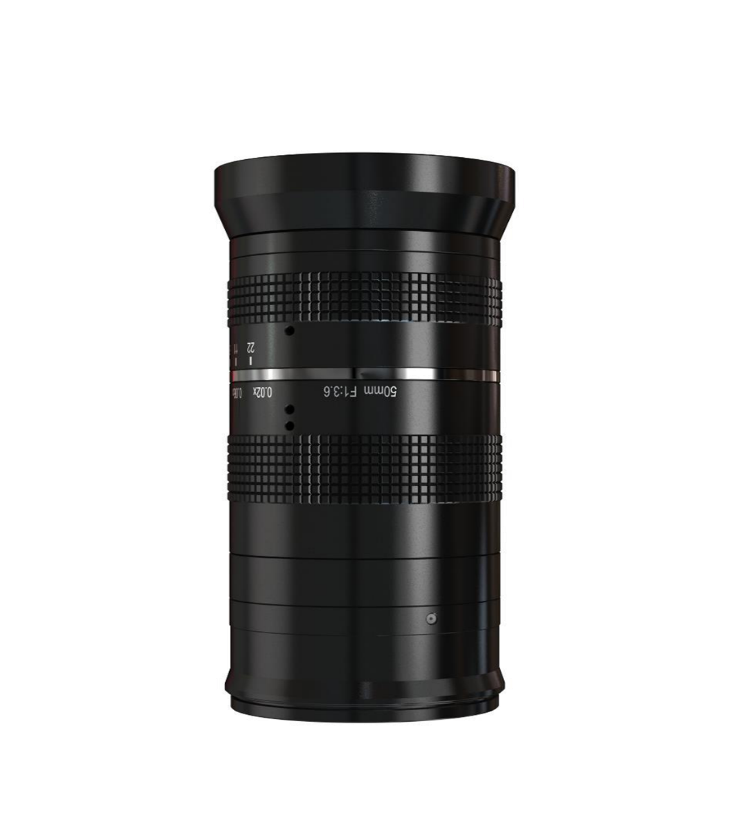

Hikrobot MVL-LF5036M-M58-65MP
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MVL-LF5036M-M58-65MP

FA Lens

Order code
MVL-LF5036M-M58-65MP
Order number
310102878
Working distance
80 mm to 2500 mm (tolerance: ±5 mm)
Focal length
50 mm

Hikrobot MVL-LF5036M-M58-65MP is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement.

Key features

✓Adopts high-precision lens for 65MP area scan cameras.
✓Provides excellent consistency of image clarity and low distortion.
✓Provides max. image size Ø46 mm.

Applications & Industries

What you can solve with this product:

Sharp, distortion-free imaging
Sharp, distortion-free imaging for inspection and gauging
Matched field of view and working distance
Matched field of view and working distance for the camera
Stable imaging
Stable imaging for measurement and positioning

Specifications

Performance
Focal length50 mm
F-numberF3.6 to F22
Image sizeØ46 mm
Optical distortion0.3%
Magnification range0.02x to 0.5x
Working distance range80 mm to 2500 mm (tolerance: ±5 mm)
Mechanical
Iris controlManual
Focus controlManual
Filter threadM62 × P0.75
MountM58 × P0.75
Flange back length11.48 mm
DimensionØ65 mm × 132.5 mm to 153.2 mm (Ø2.6" × 5.2" to 6.0")
Weight715.49 g (1.6 lb)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
General
CertificationRoHS 2.0

Downloads

Datasheets, drawings and manuals — all in one place.

MVL-LF5036M-M58-65MP - Datasheet.pdfPDF · 0 B
MVL-LF5036M-M58-65MP - Drawing.zipZIP · 0 B
