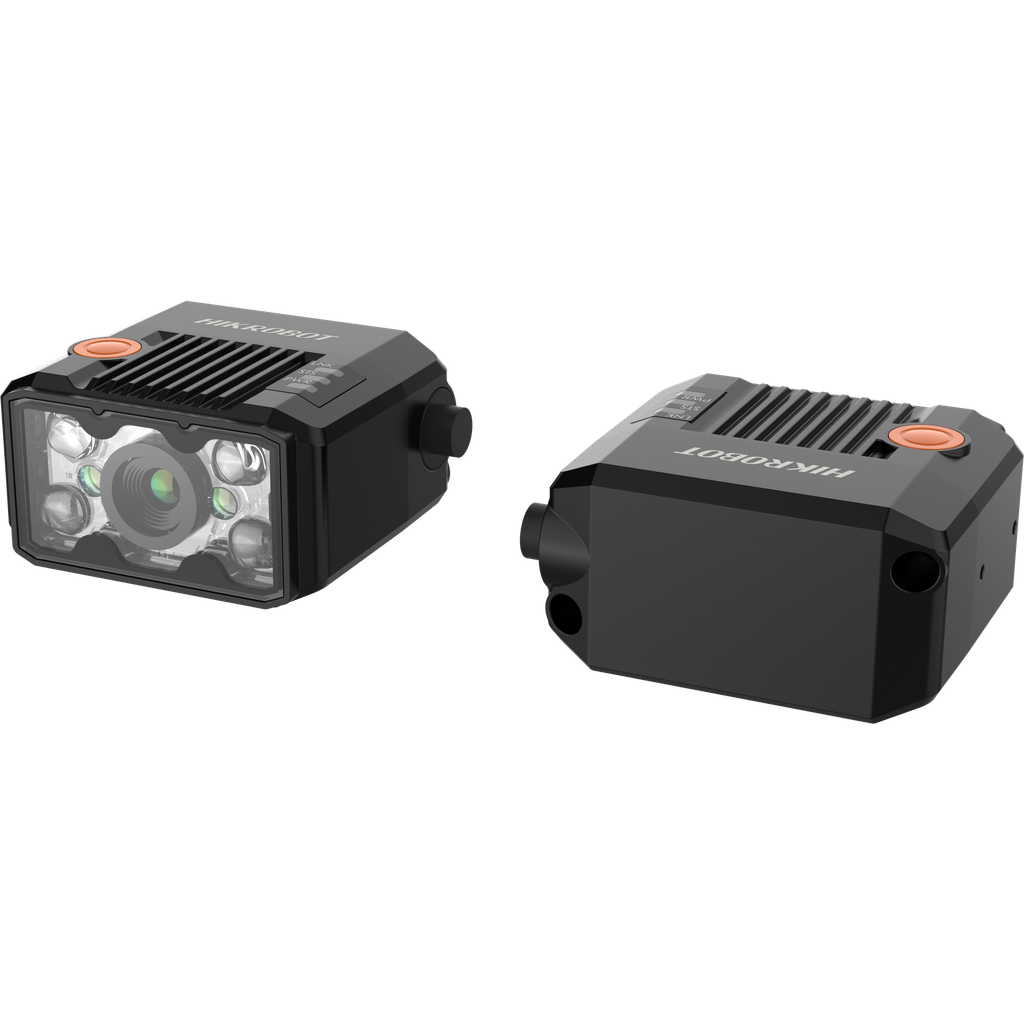

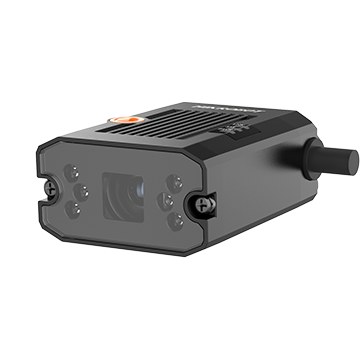

Hikrobot MV-ID2016M-16S-RBN

ID2000 Series Smart Code Reader

Order code
MV-ID2016M-16S-RBN
Order number
313200489
Resolution
1408 × 1024
Frame rate
60 fps
Working distance
105 mm to 150 mm
Focal length
16 mm

Hikrobot MV-ID2016M-16S-RBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Compact design and small in size.

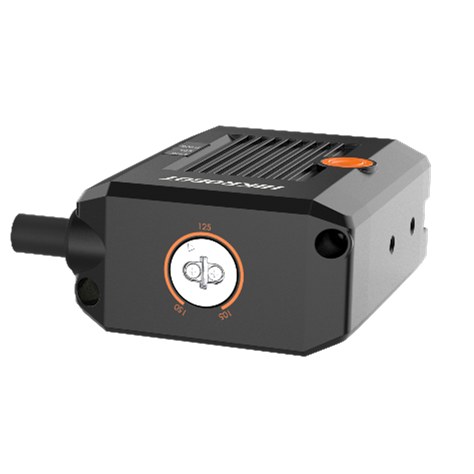

✓Adopts focus knob for adjusting focusing manually.
✓Adopts multiple IO interfaces and plug-in power interface.
✓Supports multiple communication protocols, including SmartSDK, TCP Server, Serial, FTP, TCP Client, Profinet, Melsec/SLMP, Ethernet/IP, Modbus, UDP, and Fins.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductorFood & beveragePharmaceuticalNew energy
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin Stacked codes: PDF 417
Max. frame rate60 fps
Max. reading speed45 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Exposure time16 μs to 1 sec
Gain0 dB to 15 dB
MonoMono
Communication protocolSmartSDK, TCP Server, Serial, FTP, TCP Client, Profinet, Melsec/SLMP, Ethernet/IP, Modbus, UDP, and Fins
Electrical feature
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1. Device trigger via pressing button on side supported.
Power supply12 VDC to 24 VDC
Max. power consumptionApprox. 24 W @ 24 VDC
Mechanical
Focal length16 mm
Lens mountM12-mount, adjusting focus manually supported
Working distance105 mm to 150 mm
Ambient illumination0 lux to 50000 lux
Light sourceRed
Aiming systemNot supported
IndicatorPower indicator (PWR), network indicator (LNK), and status indicator (STS)
Dimension46 mm × 25 mm × 57.6 mm (1.8" × 1.0" × 2.3")
WeightApprox. 215 g (0.5 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
