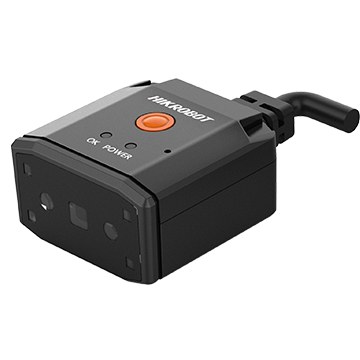

Hikrobot MV-ID2013EM-05-WBN-U

ID2000 Series Smart Code Reader

Order code
MV-ID2013EM-05-WBN-U
Order number
313200590
Resolution
1280 × 1024
Frame rate
50 fps
Focal length
4.7 mm
Pixel size
2.7 μm × 2.7 μm

Hikrobot MV-ID2013EM-05-WBN-U is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Built-in deep learning algorithm to read codes with good robustness.
✓Compact design and small in size.
✓Adopts multiple IO interfaces and plug-in power interface.
✓Adopts LED aiming light to help aim codes.
✓Adopts buzzer and indicator for indicating device status.
✓Supports one-click parameter adjustment for convenient operation.

Applications & Industries

What you can solve with this product:

Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max. frame rate50 fps
Max. reading speed30 codes/sec
Sensor typeCMOS, global shutter
Pixel size2.7 μm × 2.7 μm
Sensor size1/4"
Resolution1280 × 1024
Exposure time60 μs to 0.6 sec
Gain1 dB to 28 dB
Mono/colorMono
Communication protocolNetwork interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP USB interface: SmartSDK, USB (HID, CDC)
Depth of fieldCode 39 (5 mil): 75 mm to 215 mm Code 128 (10 mil): 50 mm to 400 mm EAN 13 (13 mil): 60 mm to 420 mm QR Code (15 mil): 40 mm to 290 mm Data Matrix (10 mil): 50 mm to 240 mm
Electrical feature
Data interfaceNetwork interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0
Digital I/ONetwork interface: DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. USB interface: DB15 connector provides data transmission. Supports device triggering via pressing button on side.
Power supplyNetwork interface: 12 VDC to 24 VDC USB interface: 5 VDC (USB 2.0 provides power supply)
Max. power consumptionNetwork interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC
Mechanical
Focal length4.7 mm
Lens mountM5.8-mount
Ambient illumination0 lux to 10000 lux
Light sourceWhite
Aiming systemGreen LED
IndicatorPower indicator (POWER), status indicator (OK/NG)
Dimension45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
WeightApprox. 68.5 g (0.2 lb.)
Ingress protectionIP54
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
