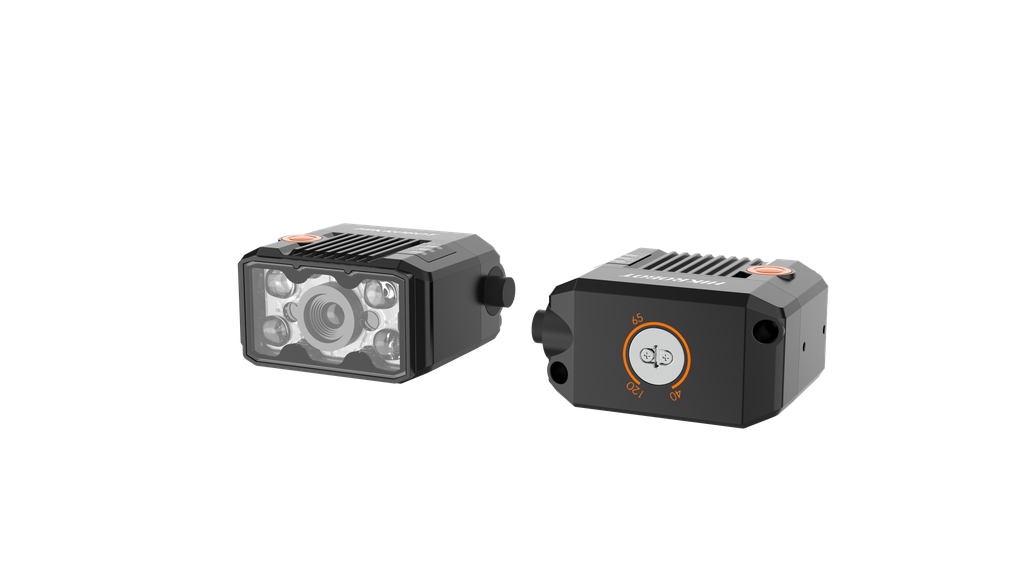

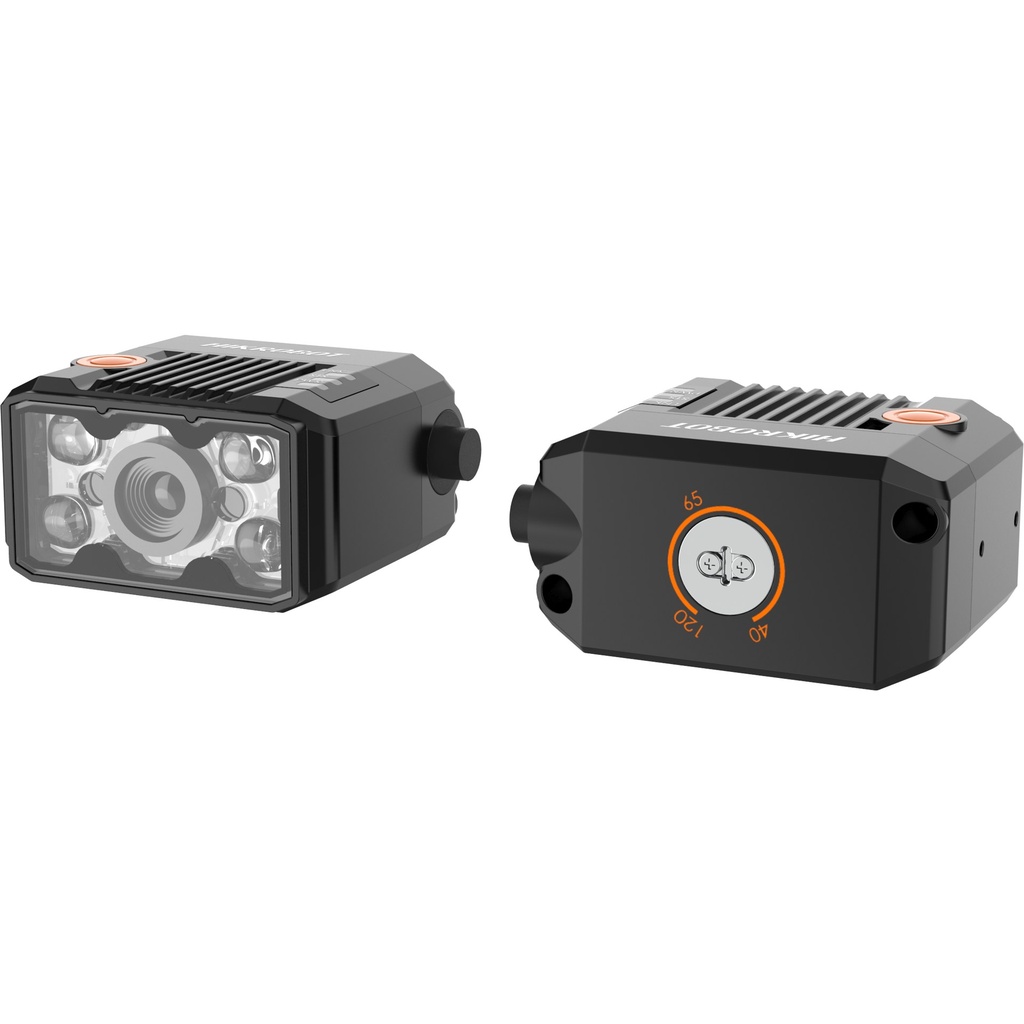

Hikrobot MV-ID2013M-06S-RBN-YAG

ID2000 Series Smart Code Reader

Order code
MV-ID2013M-06S-RBN-YAG
Order number
313200911
Resolution
1280 × 1024
Frame rate
60 fps
Working distance
40 mm to 120 mm
Focal length
6.72 mm

Hikrobot MV-ID2013M-06S-RBN-YAG is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Built-in deep learning algorithm to read codes with good robustness.
✓Compact design and small in size.
✓Adopts LED aiming light to help aim codes.
✓Adopts focus knob for adjusting focusing manually.
✓Adopts multiple IO interfaces and plug-in power interface.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductorFood & beverageNew energy
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix
Max. frame rate60 fps
Max. reading speed45 codes/sec
Sensor typeCMOS, global shutter
Pixel size4 μm × 4 μm
Sensor size1/2.7"
Resolution1280 × 1024
Exposure time35 μs to 1 sec
Gain0 dB to 15 dB
MonoMono
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins
Electrical feature
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1 Device trigger via pressing button on side supported.
Power supply12 VDC to 24 VDC
Max. power consumptionApprox. 10.6 W @ 24 VDC
Mechanical
Focal length6.72 mm
Lens mountM10-mount, adjusting focus manually supported
Working distance40 mm to 120 mm
Ambient illumination0 lux to 50000 lux
Light sourceRed
Aiming systemGreen LED
IndicatorPower indicator (PWR), network indicator (LNK), and status indicator (STS)
Dimension46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
WeightApprox. 160 g (0.4 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
