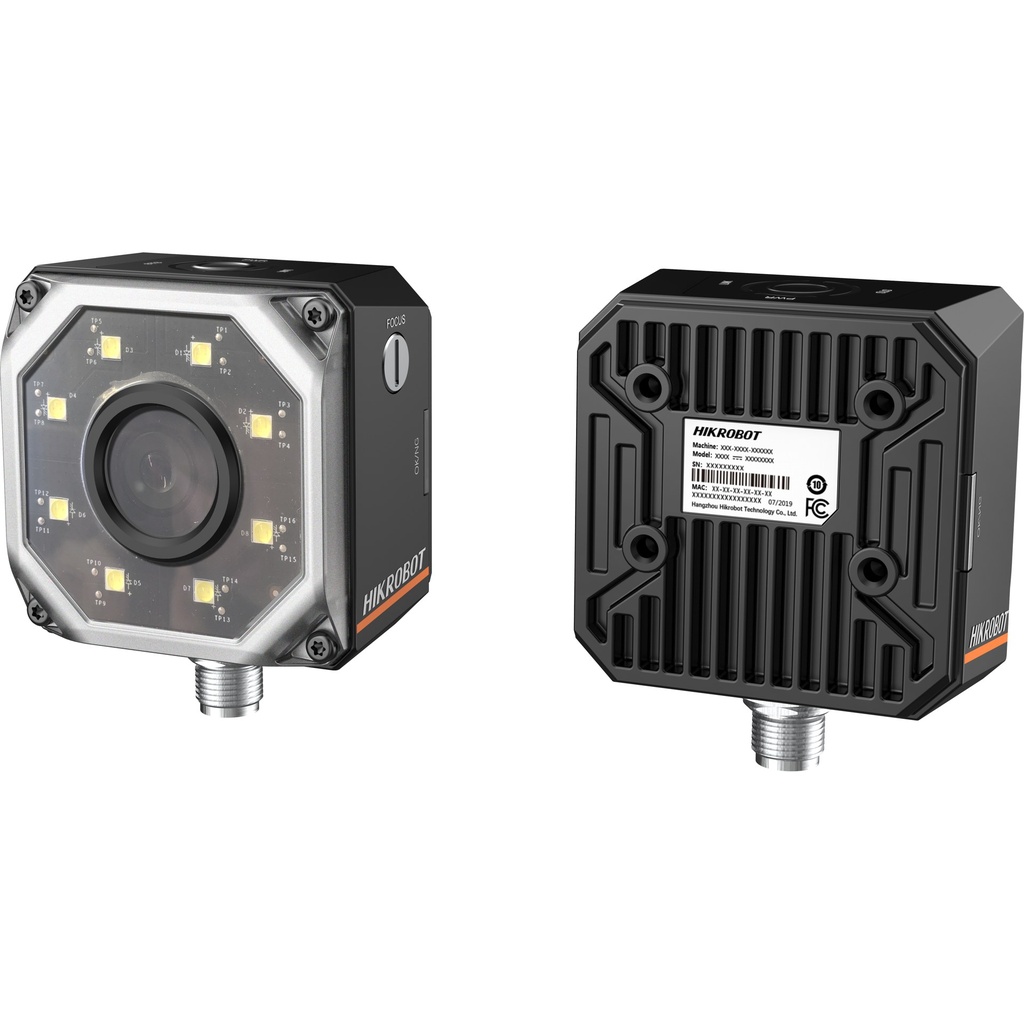

MV-ID3016PM-12M-WBN V2.0

Hikrobot MV-ID3016PM-12M-WBN — MV-ID3016PM smart code reader can read different types of Consumer electronics, food and beverage, codes with reading speed up to 84 codes/sec. It adopts pharmaceutical, semiconductor, automobile, etc. Hikrobot’s deep learning algorithm to process images with Dimension good robustness, and can recognize various complex codes. Manual focus. Genuine product, supplied by ZTEC.

1,536.40 € 1,536.40 €
kr 11,484.88
(Tax excluded)
Contact Us
Documents
MV-ID3016PM-12M-WBN - Datasheet.pdf MV-ID3016PM-12M-WBN - Drawing.pdf MV-ID3016PM-12M-WBN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ID3016PM-12M-WBN

ID3000 Series Smart Code Reader

Order code
MV-ID3016PM-12M-WBN
Order number
313200926
Resolution
1408 × 1024
Frame rate
60 fps
Focal length
12 mm (0.5")
Interface
Fast Ethernet

Hikrobot MV-ID3016PM-12M-WBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Adopts IO interfaces for input and output signals.
✓Supports multiple communication protocols, including TCP, Serial, FTP, PROFINET, etc.
✓Adopts CMOS sensor to acquire image data and provide high-quality image.
✓Supports RS-232 serial port and indicators displaying device status.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductorAutomotiveFood & beveragePharmaceutical
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1-dimensional codes: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI, Industrial 25, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix
Max. frame rate60 fps
Max. reading speed84 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Exposure time16 μs to 1 sec
Gain0 dB to 40 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus
Electrical feature
Data interfaceFast Ethernet
Digital I/O17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported.
Power supply24 VDC
Max. power consumption20 W@24 VDC (light source enabled)
Mechanical
Focal length12 mm (0.5")
Lens mountM12-mount, mechanical autofocus.
Lens capTransparent lens cap. Polarization lens cap is optional.
Light sourceSpotlight white light. Spotlight red/blue/IR, and wide-angle white/red/blue light is optional.
IndicatorPower indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Dimension65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7")
WeightApprox. 250 g (0.6 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
General
Client softwareIDMVS
CertificationCE, FCC, RoHS, KC
