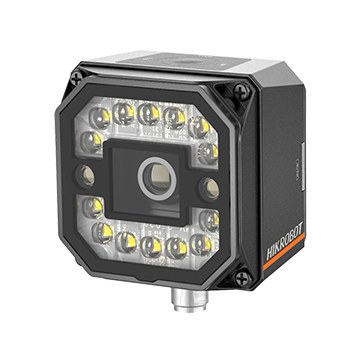

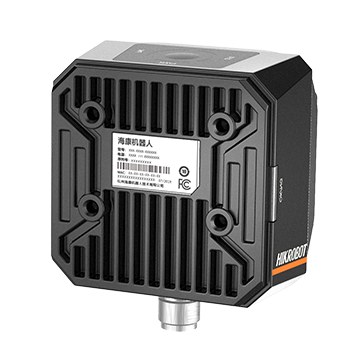

MV-ID3050PM-16M-WBN V2.0

Hikrobot MV-ID3050PM-16M-WBN — MV-ID3050PM industrial code reader can read Consumer electronics, food and beverage, different types of codes with reading speed up to 60 pharmaceutical, semiconductor, automobile, etc. codes/sec. It adopts Hikrobot’s deep learning Available Model algorithm to process images with good robustness, and can recognize various complex codes.  8 mm focal length: MV-ID3050PM-08M-WBN. Genuine product, supplied by ZTEC.

2,050.86 € 2,050.86 €
kr 15,330.60
(Tax excluded)
Contact Us
Documents
MV-ID3050PM-16M-WBN - Datasheet.pdf MV-ID3050PM-16M-WBN - Drawing.pdf MV-ID3050PM-16M-WBN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ID3050PM-16M-WBN

ID3000 Series Smart Code Reader

Order code
MV-ID3050PM-16M-WBN
Order number
313200948
Resolution
2560 × 2048;2432 × 2048
Frame rate
30 fps;50 fps
Focal length
16 mm
Interface
Fast Ethernet (100 Mbit/s)

Hikrobot MV-ID3050PM-16M-WBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Adopts CMOS global shutter sensor to provide high quality images.
✓Adopts multiple I/O interfaces for input and output signals.
✓Adopts 14 LED lights to provide polarized and non-polarized modes.
✓Adopts 2 LED aiming lights for easy installation and code aiming.
✓Indicators on device display device status and code reading results.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductorAutomotiveFood & beveragePharmaceutical
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial25 2D codes: QR Code, Data Matrix Stacked codes: PDF417;1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF417
Max. frame rate30 fps;50 fps
Max. reading speed60 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.2 μm × 3.2 μm;3.4 μm × 3.4 μm
Sensor size1/1.7"
Resolution2560 × 2048;2432 × 2048
Exposure time60 μs to 1 sec
Gain0 dB to 18 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Electrical feature
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Power supply24 VDC
Max. power consumption10.6 W @ 24 VDC (light source enabled);Avg.: 10.6 W @ 24 VDC (light source enabled) Max.: 45 W @ 24 VDC (light source enabled)
Mechanical
Focal length16 mm
Lens mountM12-mount, mechanical focus supported
Lens capHalf polarization lens cap by default. Polarization lens cap and transparent lens cap are optional.
Light sourceSpotlight white light. Spotlight red/blue/IR light is optional.;Spotlight white light. Spotlight red/blue/IR/UV light is optional.
IndicatorPower indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Dimension65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
WeightApprox. 280 g (0.6 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
