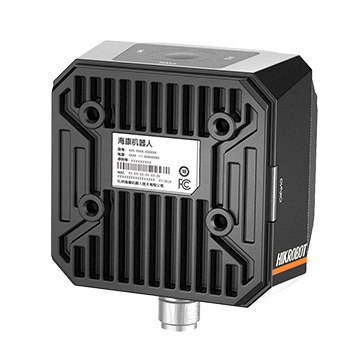

MV-ID3050PM-12M-WBN-V2.0
ID3050PM Smart Code Reader with 2368 × 1760 resolution, 60 codes/secmax reading speed, and 30 fps is the perfect choice for your automation project or production line. See the technical details below.
Max. frame rate: 30 fps
Max. reading speed: 60 codes/sec
Resolution: 2368 × 1760
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Data interface: Fast Ethernet
Light source: White light by default. Red/blue/IR light is optional.
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;CE-EMC
Symbologies: 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417.
