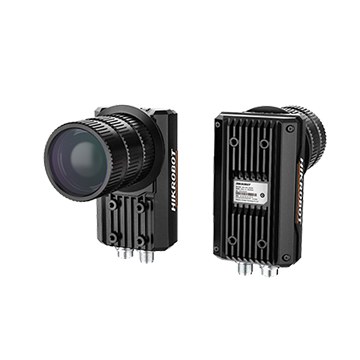

Hikrobot 313200994

ID

Resolution
5440 × 3648
Frame rate
20 fps
Interface
Gigabit Ethernet

Hikrobot 313200994 is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Specifications
Symbologies1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11
Max. frame rate20 fps
Max. reading speed36 codes/sec
Resolution5440 × 3648
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
Data interfaceGigabit Ethernet
Light sourceNot included
Dimension109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3")
Ingress protectionIP67 (under proper installation of waterproof lens cap)
CertificationCE-RoHS;CE-EMC
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.
