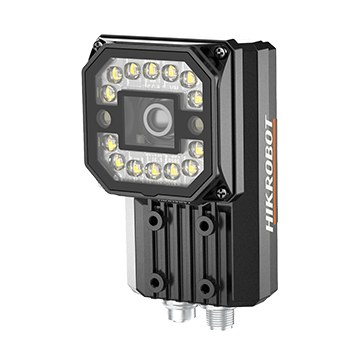

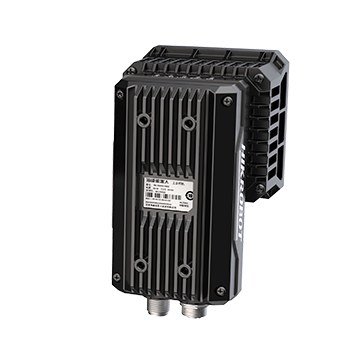

Hikrobot MV-ID5030M-08S-WBN

ID5000 Series Smart Code Reader

Order code
MV-ID5030M-08S-WBN
Order number
313201093
Resolution
2048 × 1536
Frame rate
60 fps
Focal length
8 mm (0.3")
Interface
Gigabit Ethernet (1000 Mbit/s)

Hikrobot MV-ID5030M-08S-WBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Adopts CMOS global shutter sensor to provide high quality images.
✓Adopts mechanical autofocus lens to achieve automatic focusing.
✓Supports code score and quality evaluation for code printing quality.
✓Adopts controllable light source design providing diversified light.
✓Ingress protection rating 67.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorAutomotiveLogisticsFood & beveragePharmaceutical
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1-dimensional codes: Code 39, Code 93 (including GS1 128), Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Pharmacode and Industrial 25 2-dimensional codes: QR Code (including GS1 QR), Data Matrix (including GS1 DM), Micro QR, AZTEC Stack codes: PDF 417
Max. frame rate60 fps
Max. reading speed90 codes/sec
Sensor typeCMOS, global shutter
Pixel size2.5 μm × 2.5 μm
Sensor size1/2"
Resolution2048 × 1536
Exposure time16 μs to 1 sec
Gain1 dB to 4 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP, UDP
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Power supply24 VDC
Max. power consumption60 W@24 VDC (light source enabled)
Mechanical
Focal length8 mm (0.3")
Lens mountM12-mount, mechanical autofocus supported.
Lens capHalf polarization lens cap by default. Transparent and full polarization lens cap are optional.
Light sourceWhite light by default. Red/blue/IR light is optional.
IndicatorPower indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
Dimension112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5")
WeightApprox. 450 g (1.0 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
General
Client softwareIDMVS
CertificationCE, RoHS, KC
