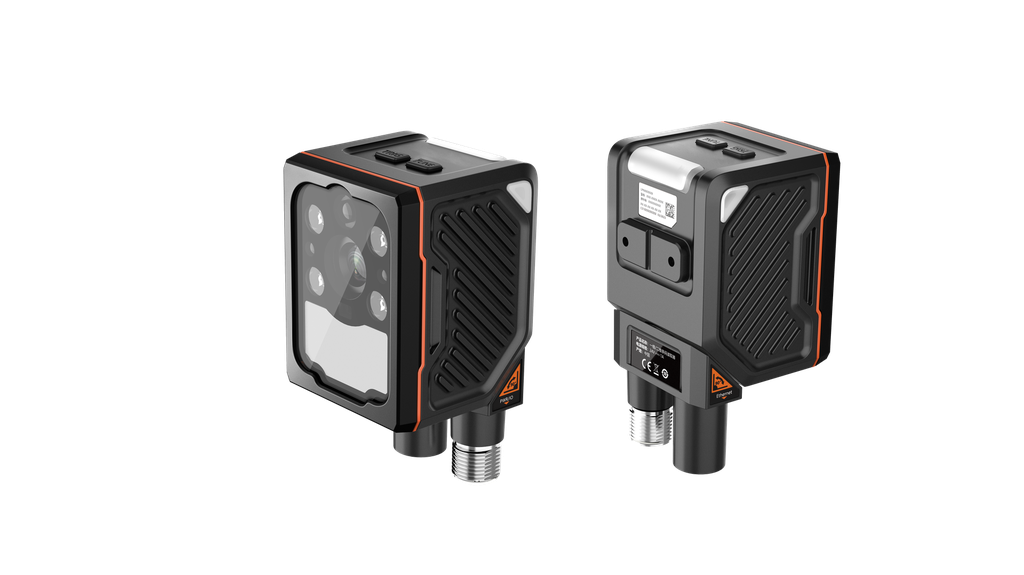

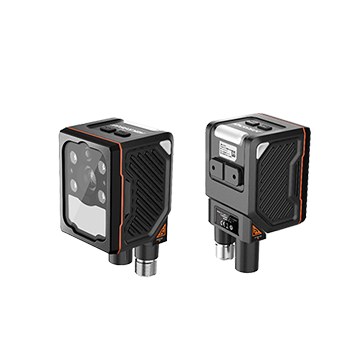

MV-ID3030XM-16M-RBN
ID3030XM Smart Code Reader with 2048 × 1536 resolution, 90 codes/secmax reading speed, and 60 fps is the perfect choice for your automation project or production line. See the technical details below.
Max. frame rate: 60 fps
Max. reading speed: 90 codes/sec
Resolution: 2048 × 1536
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Data interface: Fast Ethernet
Light source: Red point light source + white diffused light source. White/blue/IR point light source is optional.
Dimension: Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;CE-EMC;KC
Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, MATRIX 25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode 2D codes: QR Code, Data Matrix, and Micro QR Stacked codes: PDF 417.
