MV-ID3016XM-16M-RBN

https://www.ztec.dk/web/image/product.template/40948/image_1920?unique=1866d6c

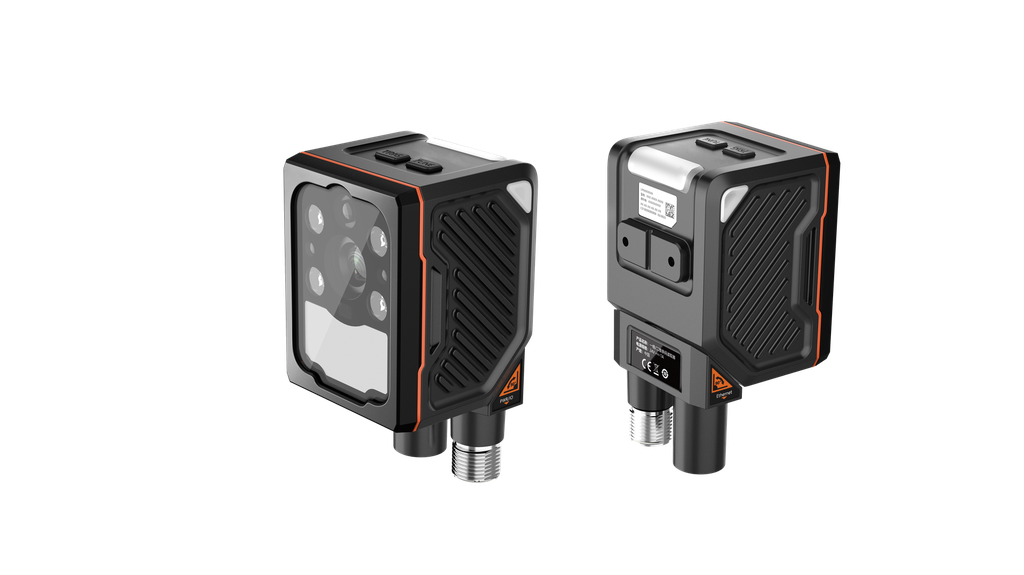

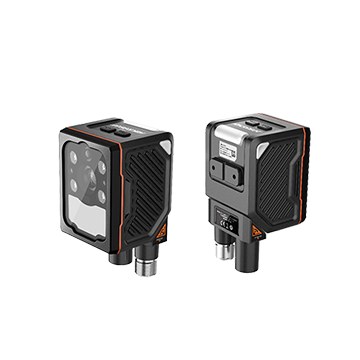

ID3016XM Smart Code Reader with 1408 × 1024 resolution, 110 codes/secmax reading speed, and 60 fps is the perfect choice for your automation project or production line. See the technical details below.


Max. frame rate: 60 fps
Max. reading speed: 110 codes/sec
Resolution: 1408 × 1024
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Data interface: Fast Ethernet
Light source: Red point light source + white diffused light source. White/blue/IR point light source is optional.
Dimension: Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Certification: CE-RoHS;CE-EMC;KC
Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, MATRIX 25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode 2D codes: QR Code, Data Matrix, and Micro QR Stacked codes: PDF 417.

1,500.64 € 1500.64 EUR 1,500.64 € Tax Excluded

kr 0.00 Tax Excluded

You need to login to see your price!

This combination does not exist.
