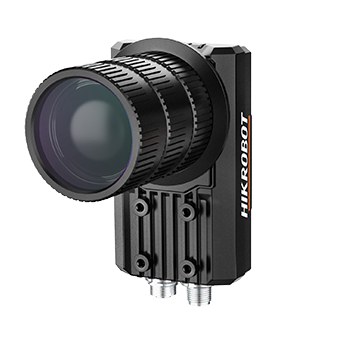

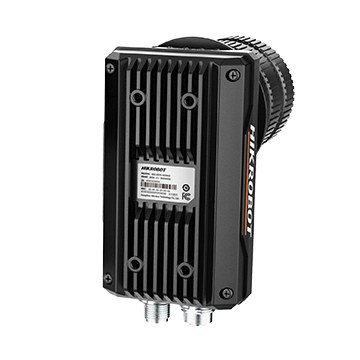

Hikrobot MV-ID5250PM-00C-NNN

ID5000 Series Smart Code Reader

Order code
MV-ID5250PM-00C-NNN
Order number
313201850
Resolution
5120 × 5120
Frame rate
15 fps
Interface
Gigabit Ethernet (1000 Mbit/s)
Pixel size
2.5 μm × 2.5 μm

Hikrobot MV-ID5250PM-00C-NNN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts CMOS global shutter sensor to provide high quality images.
✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Supports multiple communication protocols, including TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, and Fins.
✓Supports chessboard ROI and reading 200 two-dimensional codes at the same time.
✓Supports ingress protection IP67.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductorAutomotiveFood & beveragePharmaceutical
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial25, PharmaCode 2-dimensional codes: QR Code, Data Matrix, MicroQR, AZTEC, HANXIN Stack codes: PDF 417
Max. frame rate15 fps
Max. reading speed45 codes/sec
Sensor typeCMOS, global shutter
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Exposure time16 μs to 0.5 sec
Gain1 dB to 2.5 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Power supply12 VDC to 24 VDC
Max. power consumption12 W @ 24 VDC
Mechanical
Lens mountC-mount
Light sourceNot included
Lens capTransparent lens cap
IndicatorPower indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
Dimension109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3")
WeightApprox. 470 g (1.0 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
