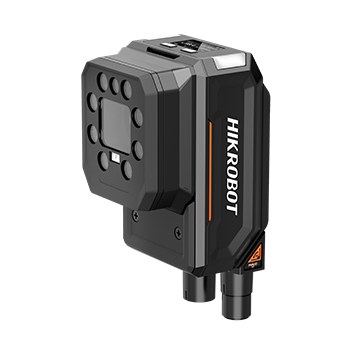

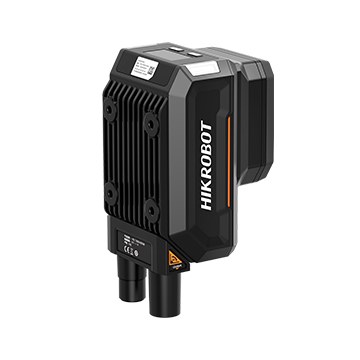

Hikrobot MV-ID5050XM-12L-RBN

ID5000 Series Smart Code Reader

Order code
MV-ID5050XM-12L-RBN
Order number
313202320
Resolution
2432 × 2048
Frame rate
92 fps
Focal length
12 mm
Interface
Gigabit Ethernet (1000 Mbit/s)

Hikrobot MV-ID5050XM-12L-RBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Adopts a built-in touchscreen to view the statistical data and adjust parameters via pressing on the screen.
✓Adopts multiple indicators to show device status from different sides.
✓Rotatable cable design for flexible mounting.
✓Adopts controllable light source design to provide diversified light according to workpiece material.
✓Adopts I/O interfaces for input and output signals.
✓Supports high-precision sensors to get the installation position.

Applications & Industries

What you can solve with this product:

Typical industries: AutomotiveFood & beverageBatteryMetalworking
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin 2D stacked codes: PDF417, MicroPDF417
Max. frame rate92 fps
Max. reading speed120 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.45"
Resolution2432 × 2048
Exposure time38 μs to 3 ms
Gain0 dB to 37 dB
Mono/colorMono
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s)
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Supports device triggering via pressing on touchscreen.
Power supply24 ± 10% VDC
Power consumptionAvg.: 11 W @ 24 VDC (light source enabled) Max.: 36 W @ 24 VDC (light source enabled)
Mechanical
Focal length12 mm
Lens mountD14-mount, liquid lens focus supported
Lens capHalf polarization lens cap by default. Transparent and full polarization caps are optional.
Light sourceRed light by default. White/blue/IR light is optional.
IndicatorMulti-directional device body indicator
Shell materialMetal
DimensionStraight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
WeightApprox. 405 g (0.9 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceDevice only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistanceDevice only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
