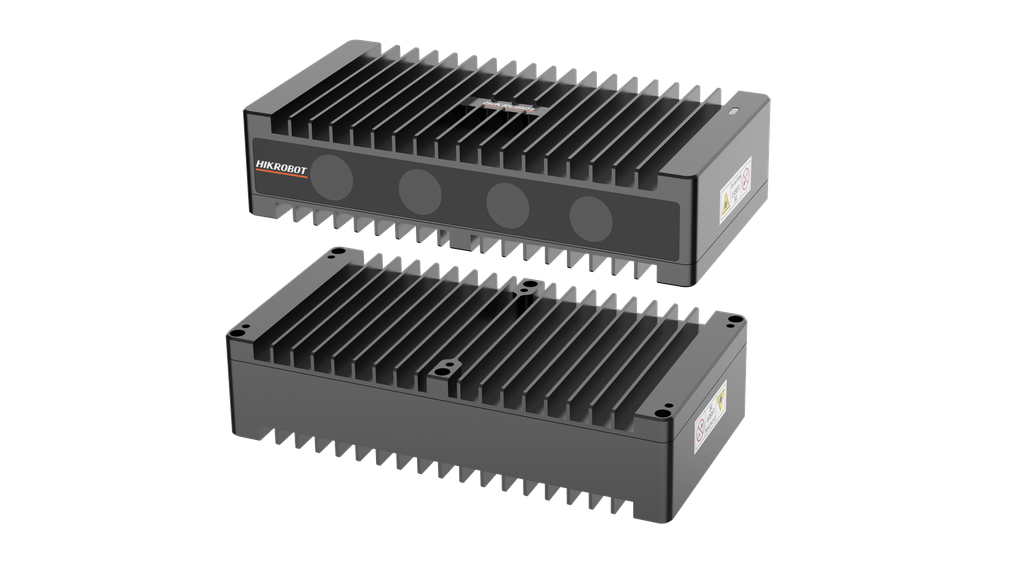

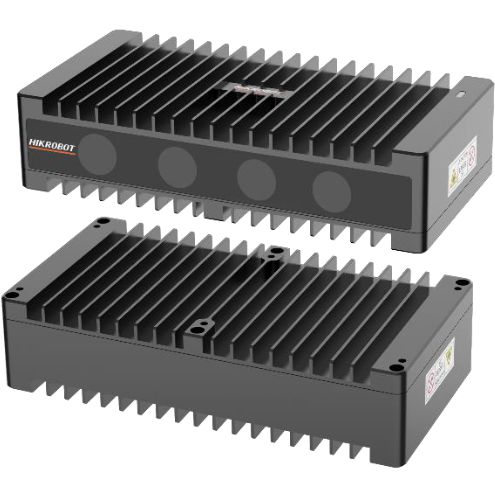

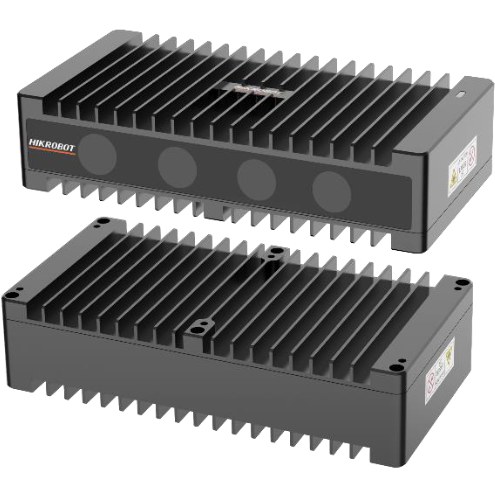

Hikrobot MV-DB500S-R

RGB-D smart camera

Order code
MV-DB500S-R
Accuracy
X, Y: 5 mm@ 1 m; 10 mm@ 2 m Z: 5 mm@ 1 m; 10 mm@ 2 m
Frame rate
8 fps@ grasp mode, supports HDR
Range
1500 mm (59.1")
Field of view
580 mm × 470 mm (22.8" × 18.5")

Hikrobot MV-DB500S-R is a 3D vision camera for measurement, positioning and robot guidance in automated processes, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning instance segmentation and point cloud segmentation to accurately locate packages.
✓High-efficient laser module and accurate exposure synchronization provide stable performance and wider dynamic range.
✓Supports synchronized output of RGB images and depth images for secondary development.
✓Supports connecting to robotic arms.
✓Adopts narrow band filters to have stronger anti-interference ability.
✓Provides default internal parameters calibration and convenient system calibration.
✓Ingress Protection (IP) 65.

Applications & Industries

What you can solve with this product:

3D measurement and positioning
3D measurement and positioning in automated processes
Robot bin-picking and part localization
Robot bin-picking and part localization
Volume, height and co-planarity control
Volume, height and co-planarity control
Assembly completeness checks
Assembly completeness checks

Specifications

Performance
Near field of view580 mm × 470 mm (22.8" × 18.5")
Far field of view2400 mm × 1800 mm (94.5" × 70.9")
Clearance distance (CD)500 mm (19.7")
Measurement range (MR)1500 mm (59.1")
Object detection range50 mm × 50 mm × 10 mm to 1000 mm × 1000 mm × 1000 mm (2.0" × 2.0" × 0.4" to 39.4" × 39.4" × 39.4")
Depth image detection accuracyX, Y: 5 mm@ 1 m; 10 mm@ 2 m Z: 5 mm@ 1 m; 10 mm@ 2 m
Color image detection accuracyX, Y: 2.6 mm@ 1 m; 5.5 mm@ 2 m
Scan frame rate8 fps@ grasp mode, supports HDR
Data typeOriginal image (mono and color images), depth image, object grasping point information
Laser safety classClass 1
Electrical feature
Data interfaceGigabit Ethernet
Digital I/O12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Power supply12 VDC to 24 VDC
Power consumption< 9 W@24 VDC
Mechanical
Dimension200 mm × 47 mm × 100 mm (7.9" × 1.9" × 3.9")
Weight1 kg (2.2 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity20 % to 85 % RH, non-condensing
General
Client software3DMVS, robotic parcel-feeding system
Operating system32/64-bit Windows 7/10
CertificationCE, RoHS
