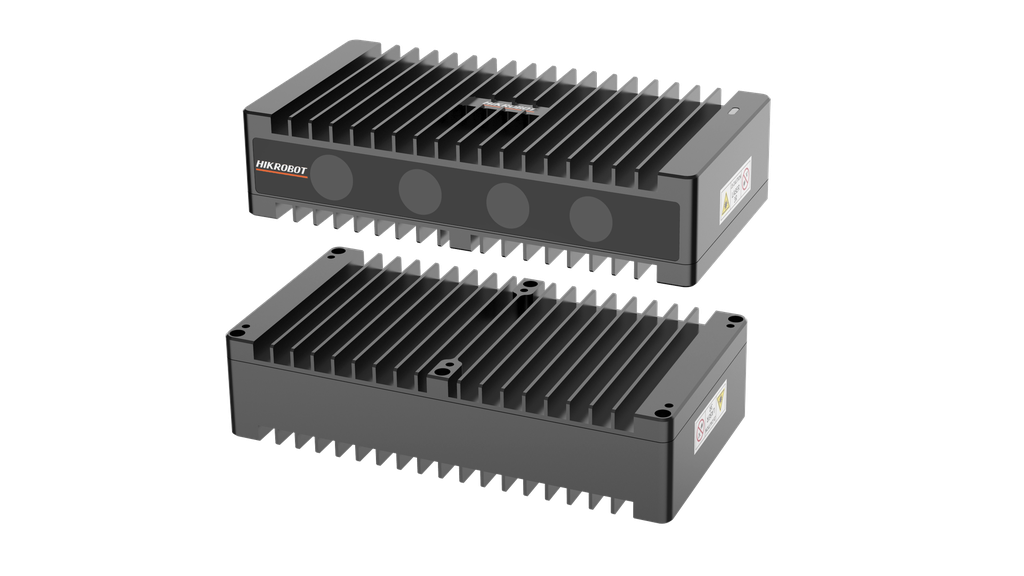

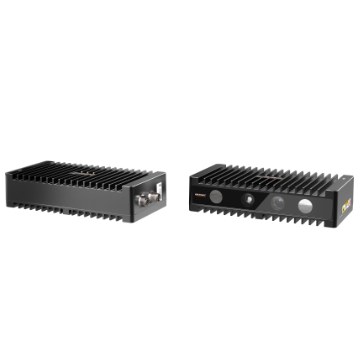

Hikrobot MV-DB500S-S

RGB-D smart camera

Order code
MV-DB500S-S
Accuracy
X, Y: 5 mm@ 1 m; 10 mm@ 2 m Z: 5 mm@ 1 m; 10 mm@ 2 m
Frame rate
25 fps@ singulation mode
Range
1500 mm
Field of view
580 mm × 470 mm

Hikrobot MV-DB500S-S is a 3D vision camera for measurement, positioning and robot guidance in automated processes.

Key features

✓Adopts built-in deep learning algorithm to provide accurate instance segmentation and positioning results.
✓High-efficient laser module and accurate exposure synchronization provide stable performance and wider dynamic range.
✓Supports synchronized output of RGB images and depth images for secondary development.
✓Adopts narrow band filters to have stronger anti-interference ability.
✓Support one-click system calibration of single camera or multiple cameras.
✓Ingress Protection (IP) 65.

Applications & Industries

What you can solve with this product:

3D measurement and positioning
3D measurement and positioning in automated processes
Robot bin-picking and part localization
Robot bin-picking and part localization
Volume, height and co-planarity control
Volume, height and co-planarity control
Assembly completeness checks
Assembly completeness checks

Specifications

Performance
Near field of view580 mm × 470 mm
Far field of view2500 mm × 1800 mm
Clearance distance (CD)500 mm
Measurement range (MR)1500 mm
Object detection range50 mm × 50 mm × 10 mm to 1000 mm × 1000 mm × 1000 mm
Depth image detection accuracyX, Y: 5 mm@ 1 m; 10 mm@ 2 m Z: 5 mm@ 1 m; 10 mm@ 2 m
Color image detection accuracyX, Y: 2.6 mm@ 1 m; 5.5 mm@ 2 m
Scan frame rate25 fps@ singulation mode
Data typeOriginal image (mono and color images), depth image, object posture information
Laser safety classClass 1
Electrical feature
Data interfaceGigabit Ethernet
Digital I/O12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Power supply12 VDC to 24 VDC
Power consumptionAvg. 5.5 W@24 VDC
Mechanical
Dimension200 mm × 47 mm × 100 mm (7.9" × 1.9" × 3.9")
WeightApprox. 1 kg (2.2 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH, non-condensing
General
Client softwarerobotic parcel-feeding system, HiViewer
Operating system32/64-bit Windows 7/10
CertificationKC
