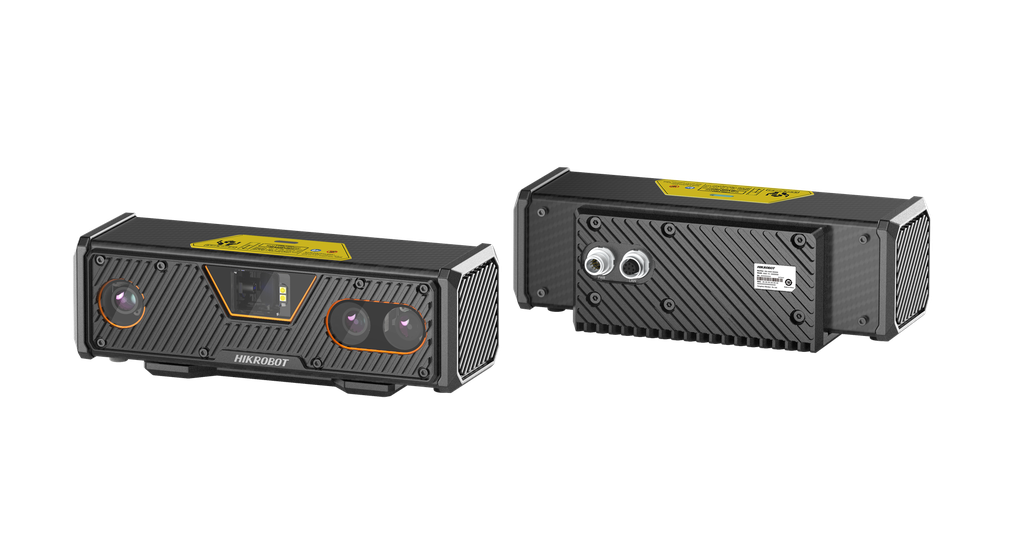

MV-DLS300P
The Hikrobot MV-DLS300P 3D stereo camera with a Measurement Range of 400 mm, Scan Speed of 1 fps and near to far FOV of 230 mm × 260 mm - 460 mm × 610 mm is the perfect binocular stereo Camera for 3D applications.
Product information:
Near FOV: 230 mm × 260 mm
Far FOV: 460 mm × 610 mm
Clearance Distance: 400 mm
Measurement Range: 400 mm
Scan Speed: 1 fps
Detection Accuracy: X,Y:0.25 mm@0.4 m;0.42 mm@0.8 m Z:0.05 mm@0.4 m;0.2 mm@0.8 m
Dimension: 254 mm × 100 mm × 107 mm
Laser Performance: Class 2; Wavelength 450 nm; Max consumption 10 mW.
Product information:
Near FOV: 230 mm × 260 mm
Far FOV: 460 mm × 610 mm
Clearance Distance: 400 mm
Measurement Range: 400 mm
Scan Speed: 1 fps
Detection Accuracy: X,Y:0.25 mm@0.4 m;0.42 mm@0.8 m Z:0.05 mm@0.4 m;0.2 mm@0.8 m
Dimension: 254 mm × 100 mm × 107 mm
Laser Performance: Class 2; Wavelength 450 nm; Max consumption 10 mW.
