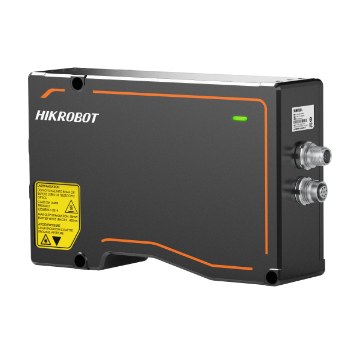

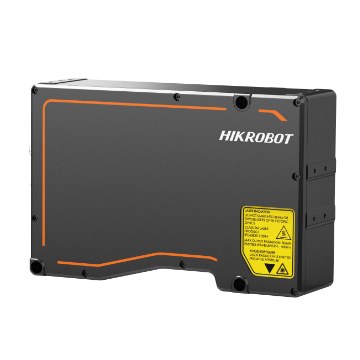

Hikrobot MV-DP2470-03H

3D Stereo Camera

Order code
MV-DP2470-03H

Hikrobot MV-DP2470-03H is a 3D laser profile sensor for high-precision profile measurement and inspection.

Applications & Industries

What you can solve with this product:

Dimensional, height and flatness measurement (sub-micron)
Dimensional, height and flatness measurement (sub-micron)
Surface and defect inspection (scratches, dents, missing material)
Surface and defect inspection (scratches, dents, missing material)
Glue/sealant bead and weld-seam inspection
Glue/sealant bead and weld-seam inspection
Volume and co-planarity control
Volume and co-planarity control
3D positioning
3D positioning for robot guidance

Specifications

Performance
Data points/profile2048
Reference distance565 mm
Measurement range (Z-axis)670 mm
Measurement range (X-axis)142 mm @ near field of view 315 mm @ reference distance 488 mm @ far field of view
Resolution (Z-axis)10.39 µm to 169.79 µm
Repeatability (Z-axis)*4.45 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)0.01
Profile data interval68.6 µm to 277.0 µm
Scan frame rate660 Hz (within max. measurement range), max. 10 kHz (in ROI mode)
Data outputProfile data, depth image, brightness image
Trigger modeSoftware trigger, external trigger (differential encoder)
Laser safety classClass 3B
Wavelength405 nm
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power supply24 VDC
Power consumption13.8 W @ 24 VDC
Mechanical
Dimension185.5 mm × 125.5 mm × 59 mm (7.3" × 4.9" × 2.3")
WeightApprox. 1450 g (3.2 lb.)
Ingress protectionIP67
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
General
Client software3DMVS, VM3D, or third-party software
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.
