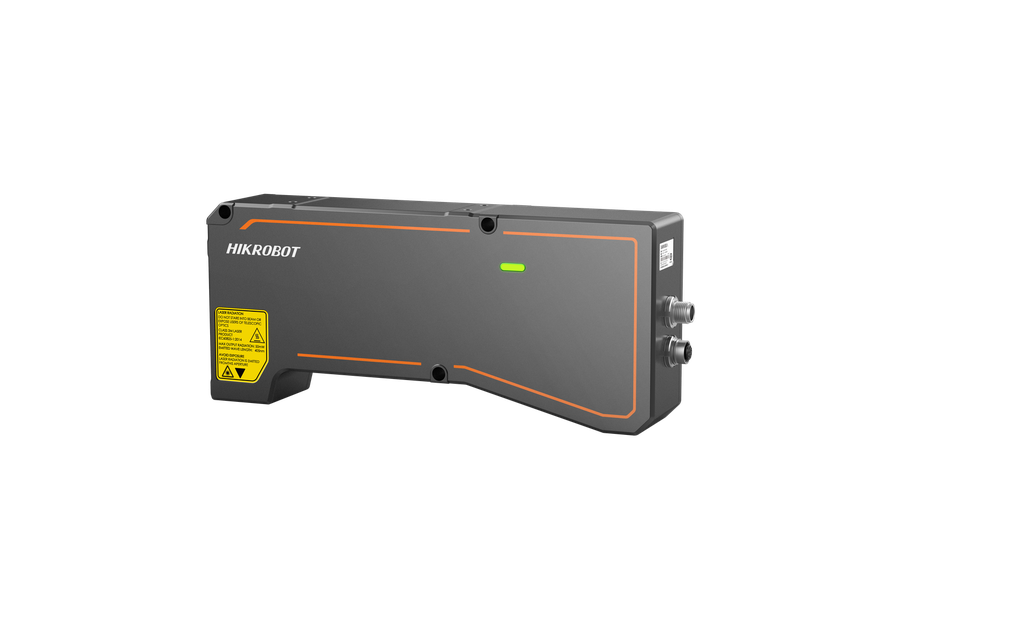

Hikrobot MV-DP3900-03P

3D Laser Profiler

ℹ En nyere version er tilgængelig: Hikrobot MV-DP3900-03P V2.0 — se anbefalet alternativ nedenfor.

Key features

Key Feature

  • Built-in high-accuracy algorithm and accuracy is up to submicron level.

  • Adopts high frame rate chip with 19 KHz scan frame rate.

  • Supports multiple exposure modes with good robustness.

  • Adopts multiple-frame integration technology to provide complete profiles.

  • Provides multiple filter modes with stable data.

  • Supports ROI selection and auto setting for easier operation.



Available Model

MV-DP3900-03P


Dimension

Technical specifications

Product ModelMV-DP3900-03P
Type3D Laser Profiler
Data points/profile3200
Reference distance947.5 mm
Measurement range (Z-axis)905 mm
Measurement range (X-axis)255 mm @ near field of view 462.5 mm @ reference distance 670 mm @ far field of view
Resolution (Z-axis)19.64 μm to 189.72 μm
Repeatability (Z-axis)*7.49 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR)0.01
Profile data interval79 μm to 247 μm
Scan frame rate1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode)
Data outputProfile data, depth image, brightness image
Trigger modeSoftware trigger, external trigger (differential encoder)
Laser safety classClass 3R
Wavelength650 nm
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power consumption13.8 W @ 24 VDC
Power supply24 VDC
Dimension275.6 mm × 118.5 mm × 57 mm (10.9" × 4.7" × 2.2")
WeightApprox. 1780 g (3.9 lb.)
Ingress protectionIP67
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
Client software3DMVS, VM3D, or third-party software
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
