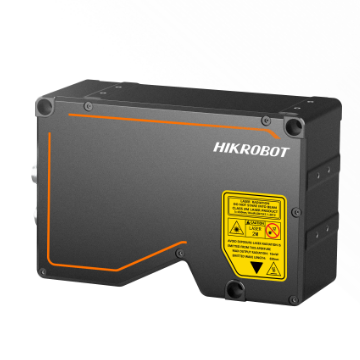

Hikrobot MV-DP3120-01P

3D Laser Profiler

Order code
MV-DP3120-01P
Order number
306400243
Resolution
4.06 μm to 8.00 μm
Z range
80 mm
Range
80 mm

Hikrobot MV-DP3120-01P is a 3D laser profile sensor for high-precision profile measurement and inspection, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Built-in high-accuracy algorithm and accuracy is up to submicron level.
✓Adopts high frame rate chip with 19 KHz scan frame rate.
✓Supports multiple exposure modes with good robustness.
✓Adopts multiple-frame integration technology to provide complete profiles.
✓Provides multiple filter modes with stable data.
✓Supports ROI selection and auto setting for easier operation.

Applications & Industries

What you can solve with this product:

Typical industries: Electronics manufacturingAutomotive3C electronics
Dimensional, height and flatness measurement (sub-micron)
Dimensional, height and flatness measurement (sub-micron)
Surface and defect inspection (scratches, dents, missing material)
Surface and defect inspection (scratches, dents, missing material)
Glue/sealant bead and weld-seam inspection
Glue/sealant bead and weld-seam inspection
Volume and co-planarity control
Volume and co-planarity control
3D positioning
3D positioning for robot guidance

Specifications

Performance
Data points/profile3200
Reference distance125 mm
Measurement range (Z-axis)80 mm
Measurement range (X-axis)61 mm @ near field of view 78 mm @ reference distance 95 mm @ far field of view
Resolution (Z-axis)4.06 μm to 8.00 μm
Repeatability (Z-axis)*1.55 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR)0.01
Profile data interval19.4 μm to 31.4 μm
Scan frame rate1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode)
Data outputOriginal image, profile data, depth image, brightness image
Trigger modeSoftware trigger, external trigger (differential encoder)
Laser safety classClass 3R
Wavelength405 nm
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power supply24 VDC
Power consumption13.8 W @ 24 VDC
Mechanical
Dimension144.5 cm × 96 cm × 58 cm (5.7" × 3.8" × 2.3")
WeightApprox. 950 g (2.1 lb.)
Ingress protectionIP67
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
General
Client software3DMVS, VM3D, or third-party software
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.
