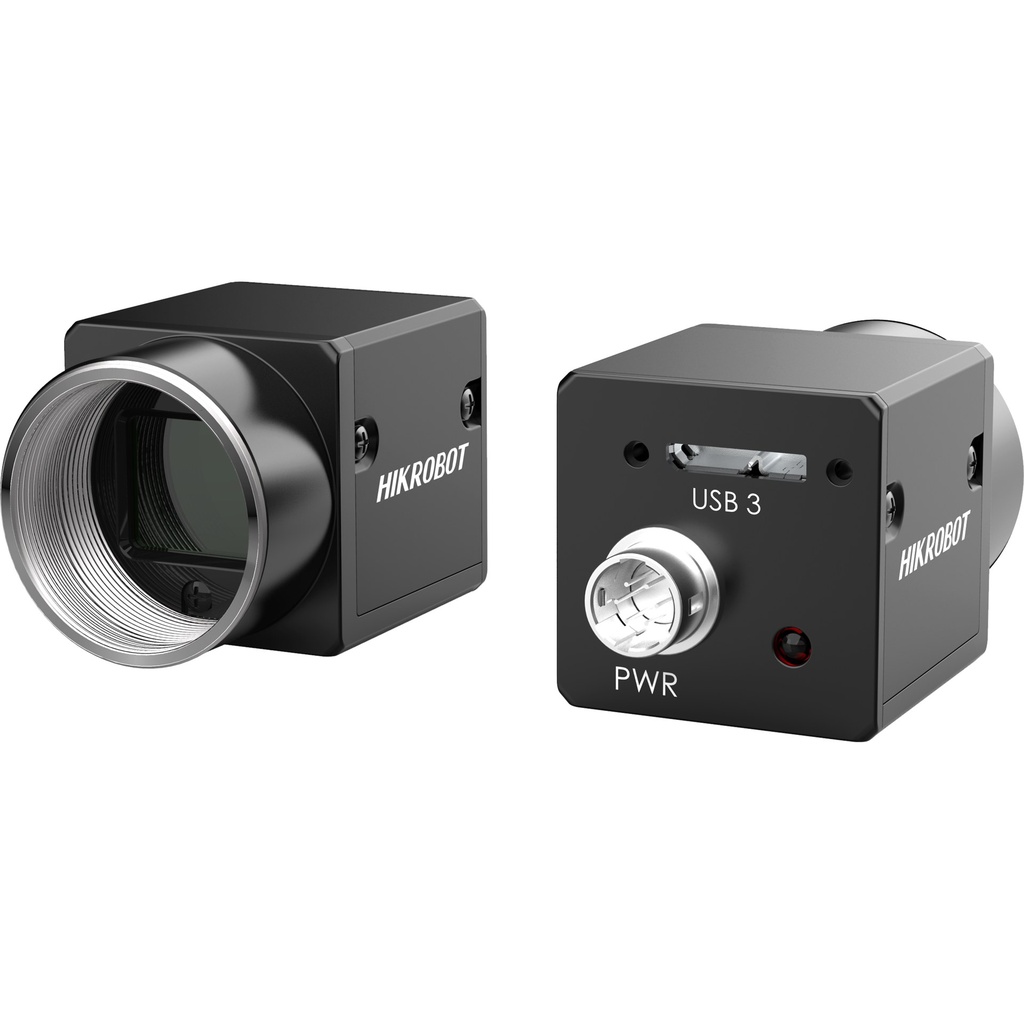

Hikrobot MV-CA004-10GM V3.0

Hikrobot MV-CA004-10GM V3.0

Hikrobot MV-CA004-10GM — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine Hikrobot product.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA004-10GM

CA

Resolution
720 × 540
Frame rate
312.9 fps @720 × 540
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
6.9 μm × 6.9 μm

Hikrobot MV-CA004-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, global shutter
Sensor modelSony® IMX287
Sensor size1/2.9"
Pixel size6.9 μm × 6.9 μm
Resolution720 × 540
Max. frame rate312.9 fps @720 × 540
Mono/colorMono
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Lens mountC-Mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
CertificationCE-RoHS;FCC-SDoC;CE-EMC;WEEE;REACH SVHC;UL;KC;CE-LVD
