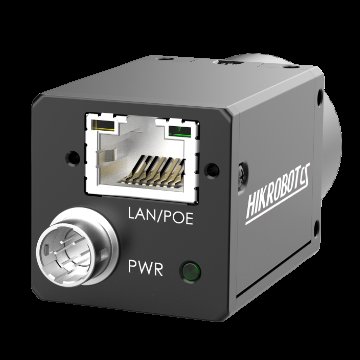

Hikrobot MV-CS020-61GC V5.0

Hikrobot MV-CS020-61GC — MV-CS020-61GM/GC camera adopts CMOS global sensor to  Mono camera: MV-CS020-61GM provide high-quality images and transmit images in real time,  Color camera: MV-CS020-61GC and its max. frame rate can reach 60.7 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CS020-61GC - CAD (RAR).rar MV-CS020-61GC - Datasheet.pdf MV-CS020-61GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS020-61GC

CS Area Scan Camera

Order code
MV-CS020-61GC
Order number
306302824
Resolution
1624 × 1240
Frame rate
60.7 fps @ 1624 × 1240 Bayer GR 8
Pixel size
4.5 μm × 4.5 μm
Sensor
Stacked BSI

Hikrobot MV-CS020-61GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports Sequencer, contrast, and super palette functions.
✓Supports hardware trigger mode, software trigger mode, and free run.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size4.5 μm × 4.5 μm
Sensor size1/1.7"
Resolution1624 × 1240
Max. frame rate60.7 fps @ 1624 × 1240 Bayer GR 8
Dynamic range75.4 dB
SNR44.6 dB
GainHigh full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
Exposure timeHigh full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.6 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10/11 and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
