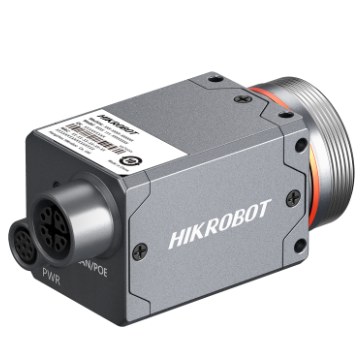

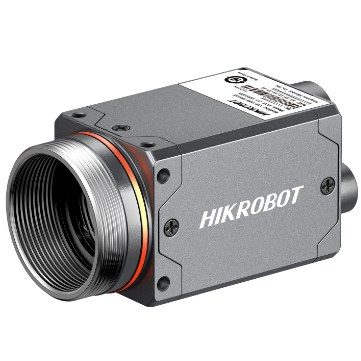

Hikrobot MV-CT050G-24GM01-PRO

CT

Resolution
2448 × 2048
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
3.45 μm × 3.45 μm
Sensor
Stacked BSI

Hikrobot MV-CT050G-24GM01-PRO is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Sensor size2/3"
Pixel size3.45 μm × 3.45 μm
Resolution2448 × 2048
Max. frame rate59.2 fps @ 2448 × 2048 Mono 8 (lossless compression mode enabled)
Mono/colorMono
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
