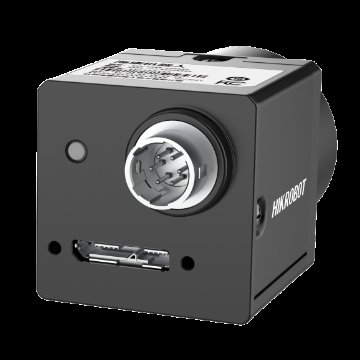

Hikrobot MV-CU020-90UC

Hikrobot MV-CU020-90UC — MV-CU020-90UM/UC camera adopts GMAX4002 CMOS  Mono camera: MV-CU020-90UM sensor to provide high-quality images. It uses USB3.0  Color camera: MV-CU020-90UC interface to transmit non-compressed images in real time, Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CU020-90UC - Datasheet.pdf MV-CU020-90UC - Drawing.pdf MV-CU020-90UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CU020-90UC

CU Area Scan Camera

Order code
MV-CU020-90UC
Order number
306302871
Resolution
2048 × 1200
Frame rate
150.2 fps @ 2048 × 1200 Bayer GB 8
Interface
USB3.0, compatible with USB2.0
Pixel size
4 μm x 4 μm

Hikrobot MV-CU020-90UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts optimized hardware design and low-power design with stable performance.
✓Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, and Gamma correction, etc.
✓Supports customized ROI, horizontal and vertical reverse image output.
✓Adopts compact design for flexible installation.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogisticsPharmaceuticalPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGMAX4002
Pixel size4 μm x 4 μm
Sensor size1/1.7"
Resolution2048 × 1200
Max. frame rate150.2 fps @ 2048 × 1200 Bayer GB 8
Dynamic range66.9 dB
SNR40.8 dB
Gain0 dB to 11.1 dB
Exposure time4 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Pixel formatBayer GB 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports USB power supply
Power consumptionTyp. 2.2 W @ 5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10/11, 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
