MV-SC6016C-00C-NNN

Hikrobot MV-SC6016C-00C-NNN — A smart camera with on-board image processing for inspection, measurement and control directly on the line. Genuine product, supplied by ZTEC.

3,934.91 € 3,934.91 €
kr 29,416.60
(Tax excluded)
  • IP Protection
  • Resolution (MP)
  • Mono or Color
  • Max. frame rate
Contact Us
Documents
MV-SC6016C-00C-NNN - CAD.zip MV-SC6016C-00C-NNN - Datasheet.pdf MV-SC6016C-00C-NNN - Drawing.pdf MV-SC6016C-00C-NNN - Industrial Protocol.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

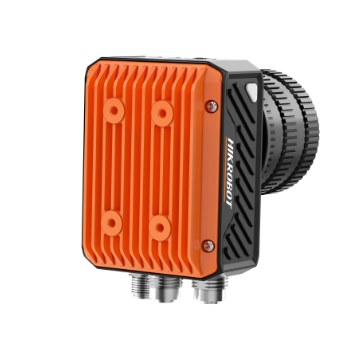

Hikrobot MV-SC6016C-00C-NNN

SC6000 Series Smart Camera

Order code
MV-SC6016C-00C-NNN
Order number
308600728
Resolution
1408 × 1024
Frame rate
60 fps
Interface
Gigabit Ethernet (1000 Mbit/s)
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-SC6016C-00C-NNN is a smart camera with on-board image processing for inspection, measurement and control directly on the line, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
✓Integrates VM functions, and supports more than 140 algorithms.
✓Adopts multiple interfaces, and supports multiple-channel I/O, light source, display, etc.
✓Adopts high-performance CPU with faster calculation performance and high efficiency.
✓Supports multiple communication protocols.
✓Supports indicators displaying device status for easy debugging and maintenance.
✓Supports ingress protection IP67.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsFood & beveragePharmaceuticalPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Tool
Function moduleVision Master Platform (include deep learning module)
Communication protocolTCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Max. frame rate60 fps
Gain0 dB to 15 dB
Exposure time16 μs to 1 sec
Pixel formatMono 8, RGB 8
Mono/colorColor
Platform
Memory8 GB
Storage64 GB
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s)
Digital I/O17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1
Extended interfaceVGA × 1, and USB host × 1
Power supply24 VDC
Power consumptionApprox. 12 W @ 24 VDC (without external light source) Approx. 42 W @ 24 VDC (with external light source)
Mechanical
Lens mountC-mount
Lens capTransparent lens cap
Light sourceNot included
IndicatorPower indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2)
Dimension116.3 mm × 68.6 mm × 101.8 mm (4.6" × 2.7" × 4.0")
WeightApprox. 530 g (1.2 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
CertificationCE, KC
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.

Contact us

Specifications

Vision specifications
Resolution (MP) 1408 x 1024 (1.4 MP)
Mono or Color Color
Max. frame rate 60 fps
Others
IP Protection IP67
