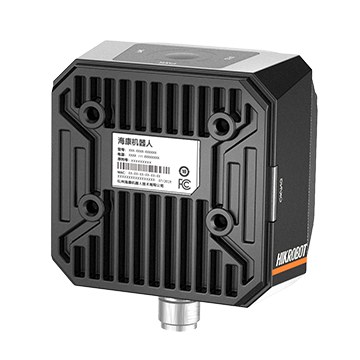

Hikrobot MV-ID3013PM-15M-WBN

ID3000 Series Smart Code Reader

Order code
MV-ID3013PM-15M-WBN
Order number
313200858
Resolution
1280 × 1024
Frame rate
60 fps
Focal length
14.8 mm (0.6")
Interface
Fast Ethernet

Hikrobot MV-ID3013PM-15M-WBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Adopts CMOS global shutter sensor to provide high quality images.
✓Adopts multiple IO interfaces for input and output signals.
✓Adopts 14 LED lamps to provide light source.
✓Supports polarized and non-polarized modes.
✓Adopts 2 LED aiming lamps for easy installation and code aiming.
✓Indicators on device display device status and code reading results.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductorAutomotiveFood & beveragePharmaceutical
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417
Max. frame rate60 fps
Max. reading speed84 codes/sec
Sensor typeCMOS, global shutter
Pixel size4 μm × 4 μm
Sensor size1/2.7"
Resolution1280 × 1024
Exposure time35 μs to 1 sec
Gain0 dB to 15 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Electrical feature
Data interfaceFast Ethernet
Digital I/O17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. Device trigger via pressing button on top supported.
Power supply24 VDC
Max. power consumptionApprox. 20 W@24 VDC (light source enabled)
Mechanical
Focal length14.8 mm (0.6")
Lens mountM12-mount, mechanical autofocus supported.
Lens capHalf polarized front cover by default. Polarized and transparent ones are optional.
Light sourceWhite light by default. Red/blue/IR light is optional.
IndicatorPower indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Dimension65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
WeightApprox. 280 g (0.6 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
General
Client softwareIDMVS
CertificationCE, RoHS
