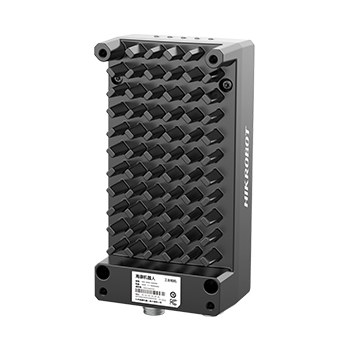

Hikrobot MV-ID6200EM-00C-NNG

ID6000 Series Logistics Code Reader

Order code
MV-ID6200EM-00C-NNG
Order number
313200901
Resolution
5440 × 3648
Frame rate
12 fps
Interface
Gigabit Ethernet (1000 Mbit/s)
Pixel size
2.4 μm × 2.4 μm

Hikrobot MV-ID6200EM-00C-NNG is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Built-in deep learning algorithm to read codes with good robustness.
✓Adopts CMOS sensor to provide high-quality images with horizontal resolution of 5K and bottom horizontal FoV covering 1-meter conveyor line.
✓Supports rapid recognition of multiple codes within large FoV.
✓Supports networking of multiple devices.
✓Flexible installation and convenient debugging.

Applications & Industries

What you can solve with this product:

Typical industries: Logistics
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max. frame rate12 fps
Max. reading speed36 codes/sec
Sensor typeCMOS, rolling shutter
Pixel size2.4 μm × 2.4 μm
Sensor size1"
Resolution5440 × 3648
Exposure time16 μs to 500 ms
Gain0 dB to 40 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, UDP
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power supply12 VDC to 24 VDC
Max. power consumption12 W @ 24 VDC
Mechanical
Lens mountC-mount
Lens capNot included
Light sourceNot included
Dimension126 mm × 66 mm × 55.3 mm (5.0" × 2.6" × 2.2")
WeightApprox. 550 g (1.2 lb.)
Ingress protectionIP64
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS
