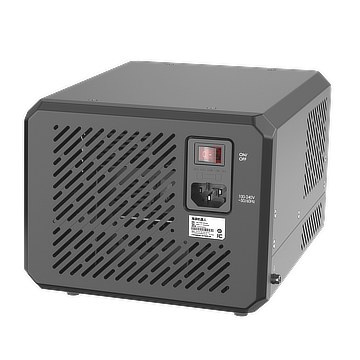

Hikrobot MV-LE201-200W48-2TD

Hik Light Controller

Order code
MV-LE201-200W48-2TD
Order number
310101252
Interface
C13 220 VAC interface

Genuine Hikrobot Light Controller — light controller for driving and dimming machine-vision illumination.

Key features

✓Adopts constant current to improve light source stability.
✓Adopts buttons and display to have quick operations.
✓Supports using network interface to set parameters and manage the device.
✓Supports external trigger interface for different lighting modes.
✓ Supports overcurrent, overload, overtemperature, short circuit protection.

Specifications

Performance
Drive modeDigital, constant current
Lighting modeContinuous, strobe
Channel2-channel
Dimming modeControl panel (via pressing button), software (serial port or network interface)
Brightness level0 to 255
Lighting response time< 10 μs
Trigger modeExternal trigger and internal trigger
Communication protocolUDP, Serial
Applicable productLine scan light (with 19M-8H and 19M-8A connector).
Electrical feature
Input voltage100 VAC to 240 VAC, 50 Hz/60 Hz
Input current1.8 A (115 VAC), 1 A (230 VAC)
Output voltage48 VDC
Output currentMax. 4 A
Output powerMax. 200 W
Output current for each channelMax. 4 A
Trigger inHigh level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
Trigger outHigh level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical
Power supply interfaceC13 220 VAC interface
Console interfaceRJ45 network interface, DB9F serial port
Digital I/OOpto-isolated input × 2, opto-isolated output × 2
Lighting output connector19M-8H (Female) × 2
Dimension257.3 mm × 180 mm × 150.8 mm (10.1" ×7.1" × 5.9")
Shell materialPlastic + SECC
Weight2070 g (4.6 lb.)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 85% RH (no condensation)
Ingress protectionIP30
Cooling modeFan cooling
General
CertificationCE, KC
