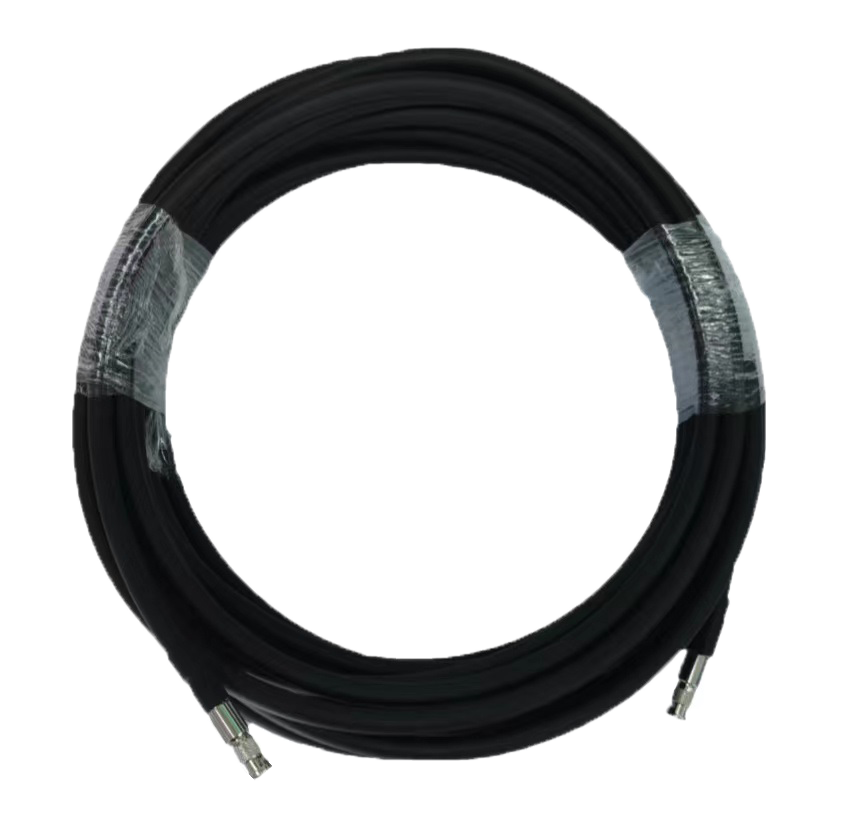

Hikrobot MV-ACXP12-HDBNC-HDBNC-HF-3m

Hikrobot MV-ACXP12-HDBNC-HDBNC-HF-3m

Hikrobot MV-ACXP12-HDBNC-HDBNC-HF-3m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

581.70 € 581.70 €
kr 4,348.46
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACXP12-HDBNC-HDBNC-HF-3m

Cable

Order code
MV-ACXP12-HDBNC-HDBNC-HF-3m
Order number
310100919

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The CXP-12 high-flex data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.

Specifications

Specifications
End A connectorHD-BNC
End B connectorHD-BNC
Cable diameter5 mm
Length3 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 mating cycles
Min. bending radius60 mm
Applicable scenarioDrag chain
Max. U-type bending cycles2 million times
Electrical specification
Max. voltage300 VDC
Additional information
Working temperature–30 °C to 80 °C (–22 °F to 176 °F)
CertificationRoHS, UL
PackagingIndividual package
